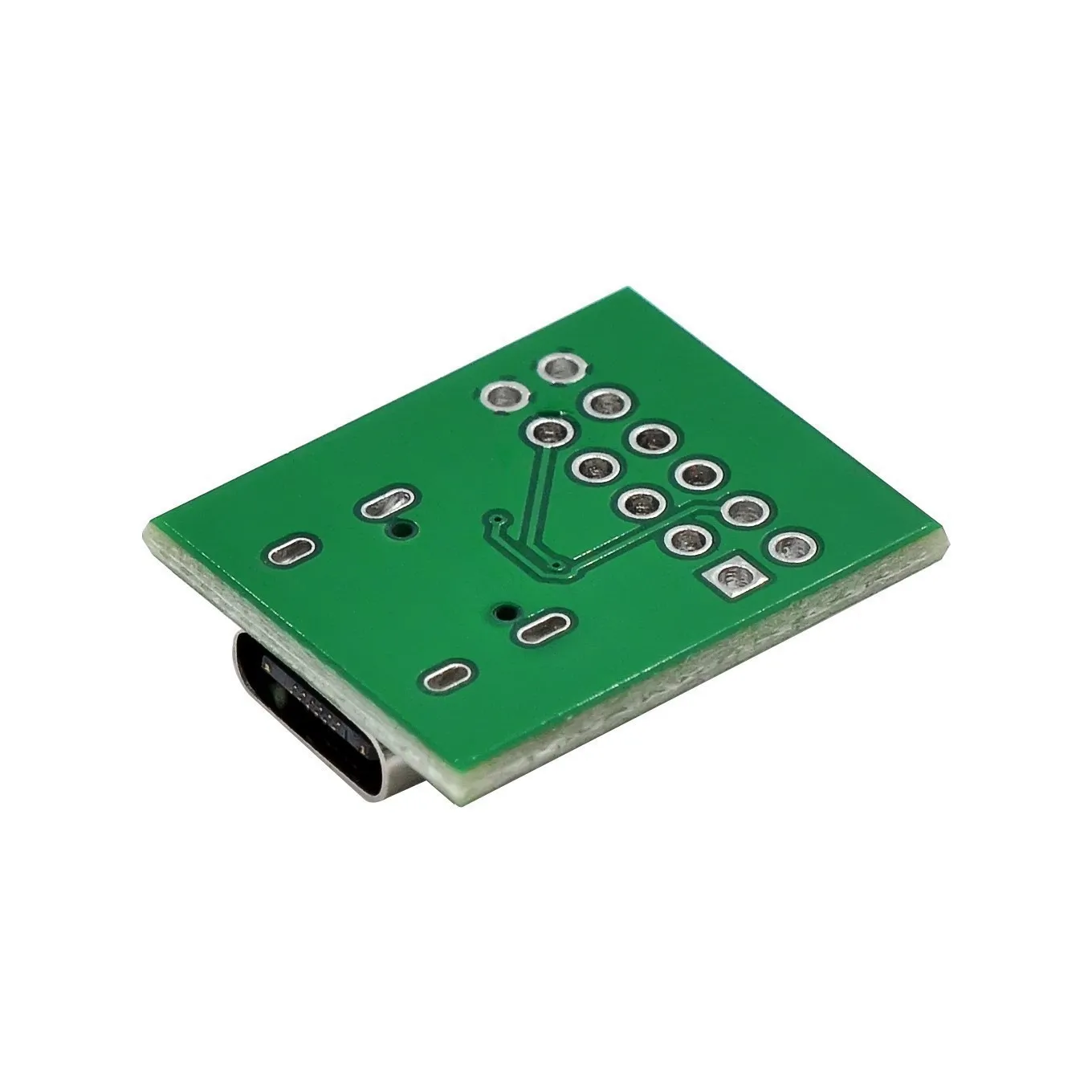

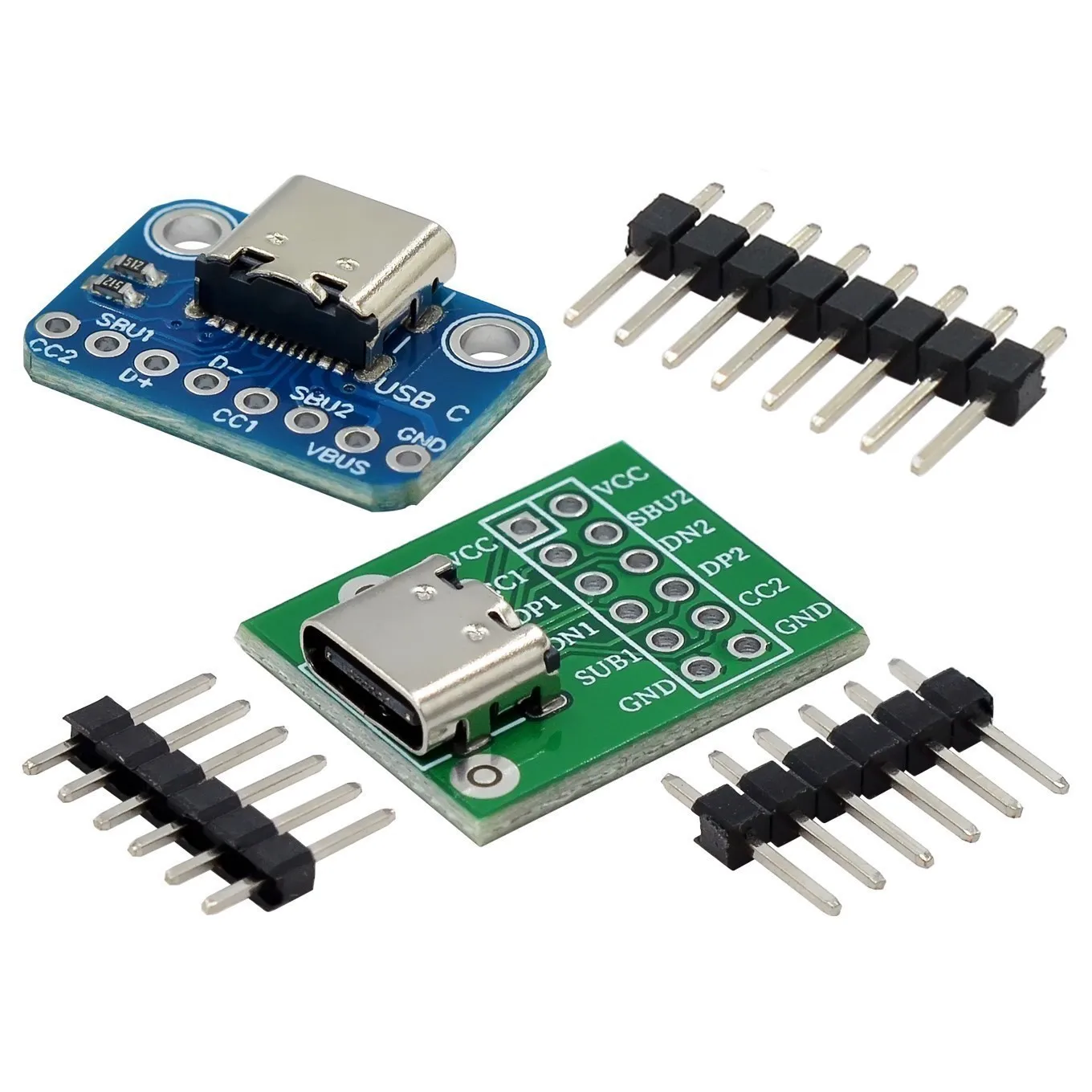

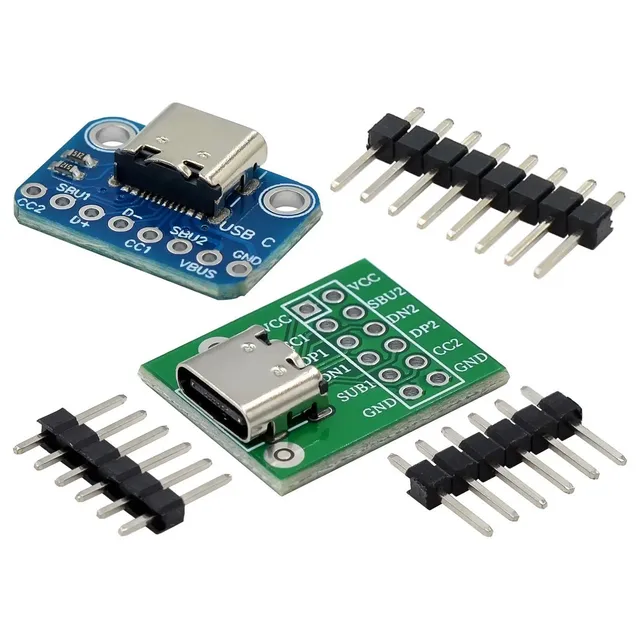

Type-c usb transfer pin dip female base B adapter plate welded female head typec feed and discharge pin 1

Type-c usb transfer pin dip female base B adapter plate welded female head typec feed and discharge pin 2

Type-c usb transfer pin dip female base B adapter plate welded female head typec feed and discharge pin 3

Type-c usb transfer pin dip female base B adapter plate welded female head typec feed and discharge pin 4

Type-c usb transfer pin dip female base B adapter plate welded female head typec feed and discharge pin

Artikelnummer: 1ZC5ZM2Y6ODE

$1.66 – $1.91

7819 Items sold in last week

color

Leeren

Zum Vergleich hinzufügen

Payment Methods:

Description

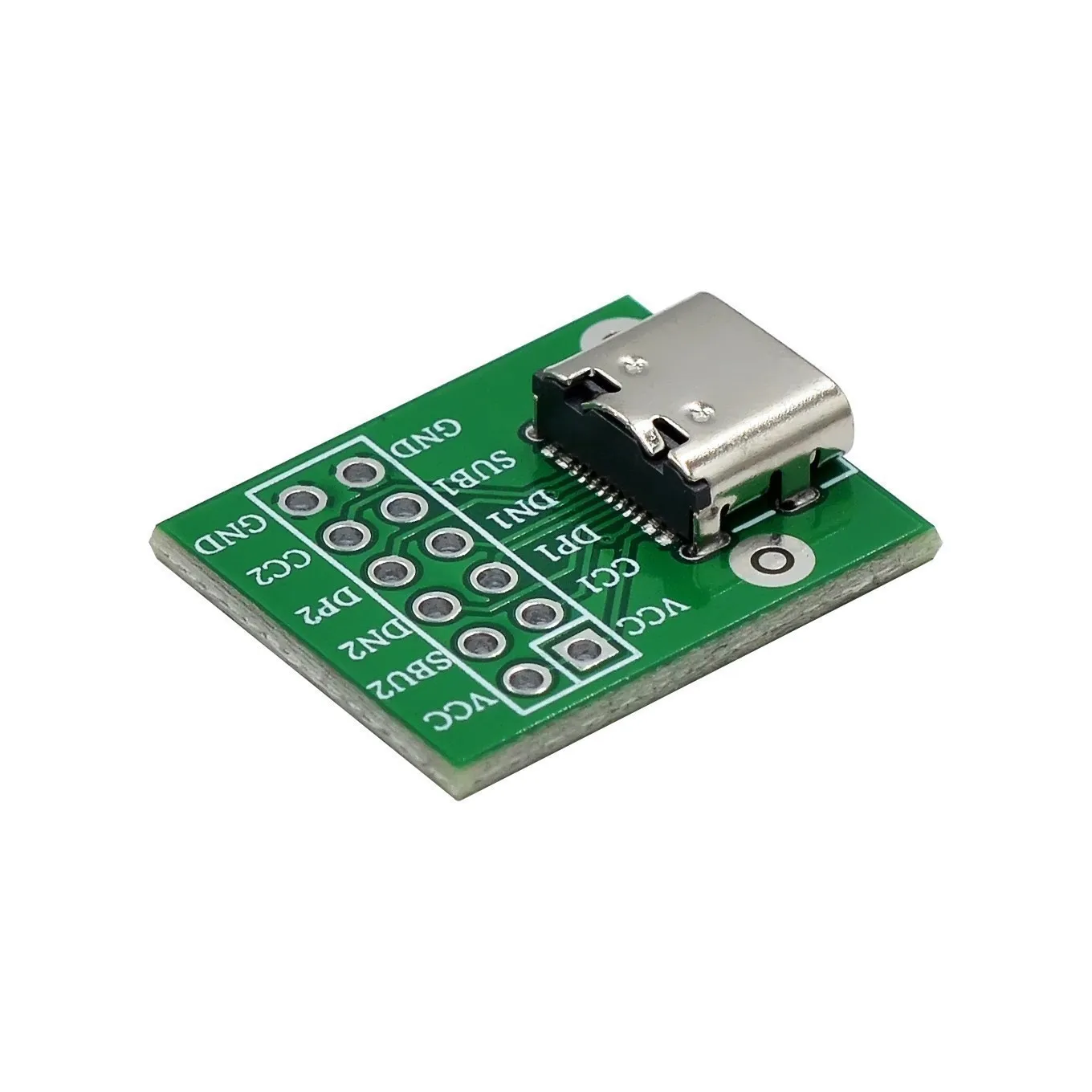

The product is a type-C mother base adapter board, which leads out all pin pins of type-C base to realize the function of connecting with row pin / row mother.
Size 17.6 * 21.5mm
Pin-Pin function
VCC Positive pole of power supply
SBU1 Sideband usage
SBU2 Sideband usage
DP1 USB 2.0 differential signal, position 1, positive
DP2 USB 2.0 differential signal, position 2, positive
CC1 Configure channels for identification and control
CC2 Configure channels for identification and control
DN1 USB 2.0 differential signal, position 1, negative
DN2 USB 2.0 differential signal, position 2, negative
GND Negative pole of power supply
