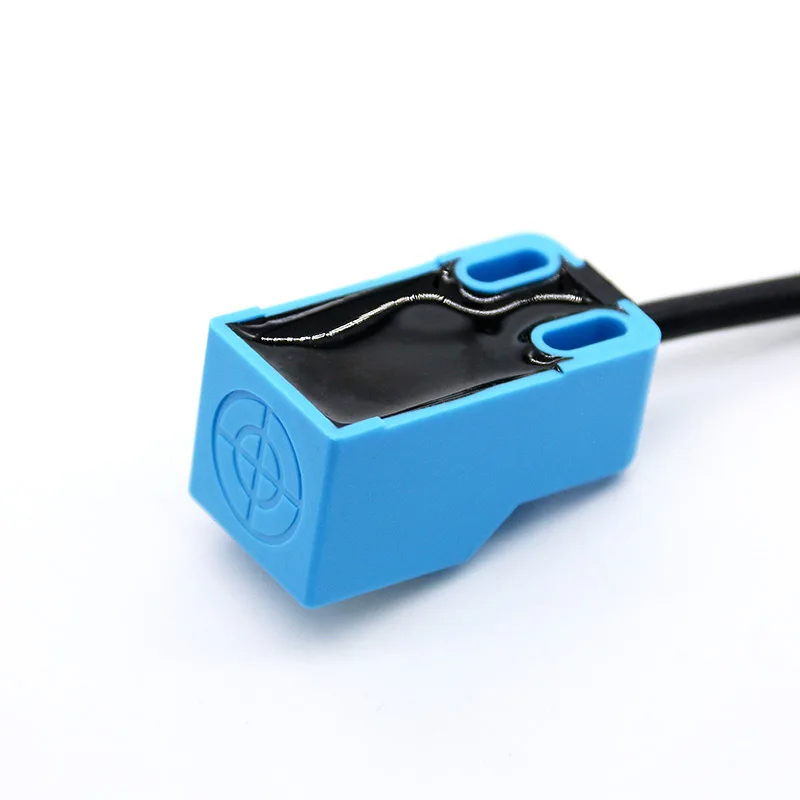

Proximity switch SN04-N metal detection sensor for metal inspection SN04-N2 SN04-P SN04-P2 SN04-D1 D2 Y1 Y2 NPN PNP NC NO

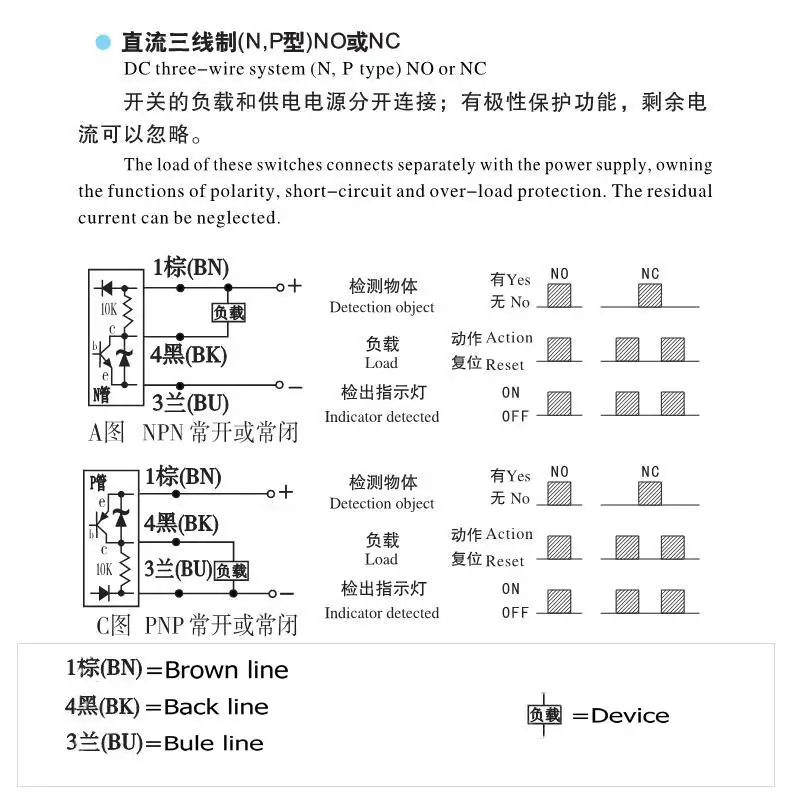

SN04-P1: PNP Normally Open 3-Line type 4mm detection distance
SN04-P2: PNP Normally Close 3-Line type 4mm detection distance
SN04-N1: NPN Normally Open 3-Line type 4mm detection distance
SN04-N2: NPN Normally Close 3-Line type 4mm detection distance
[Main Parameter]

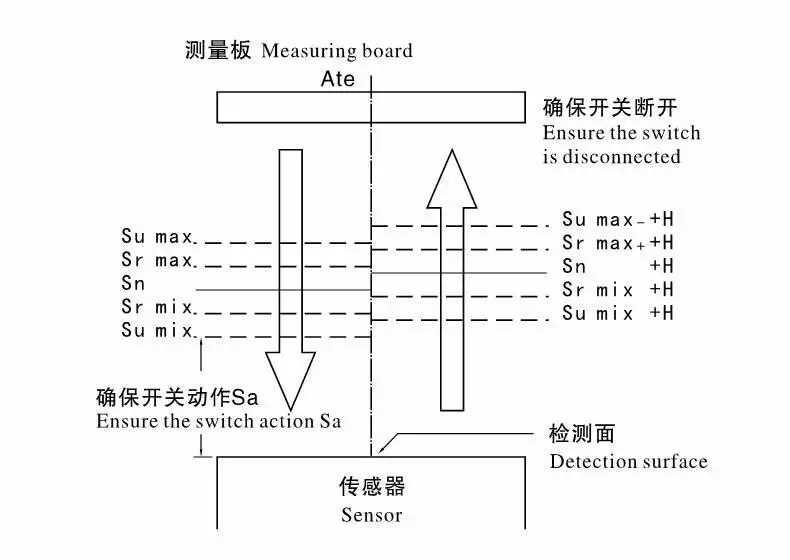

Detection distance :4mm ± 10%
Set distance:0~3.8mm
Delay distance:10% below of the detection distance
Detection object:Magnetic metal(the detection distance decreases when it is non-magnetic metal)
Stand detection object:Iron 18*18*1mm
Response frequency:DC:0.5kHz
Supply voltage:DC type:DC12V DC24V DC36V(DC6~36V)impulse(p-p)10% below
Withstand voltage:AC1000V 50/60Hz 1min between charging part and housing
Meterial:(Housing:Nickel plated brass) (Detection surface:ABS)
Protection influence:IP67(IEC specification)
This product can be applied to control relays, counters,PLC, etc.!
