1200W 20A DC Car Step-up Power Supply Module Boost Converter Adjustable 10-60V to 12-83V

Specifications:
Type: Non-isolated boost module
Input Voltage: DC10V to 60V
Input Current: 20A (could reach 25A at 12V-24V when adding cooling fan)
Quiescent Current: 15mA(will increase when convert 12V to 20V)
Output Voltage: 12V to 83V(continuously adjustable, default 19V)
Output Current: 18A (related to the input and output voltage difference, the greater voltage difference is, the smaller output current will be. please enhance heat dissipation when current is over 10A)
Constant Current Range: 0.5A to 18A(+/-0.3A)
Reverse Input : Yes (150A MOS)
Lower Voltage : Yes (9V to 50V adjustable)
Temperature Control Fan: Yes (Fan starts to work if more than 55℃)
Operating Temperature: -40℃ to 85℃(if temperature is too high, please enhance heat dissipation)
Frequency: 150KHz
Conversion Efficiency: 92% to 97% (Efficiency is related to input/output voltage, current and voltage difference. The smaller difference is, the higher efficiency will be)
Input Over-current : Yes (automatically when input is more than 25A, and power supply voltage will not increase)
Short Circuit : Yes (input 30A )
Wiring Method: Terminals (Please use large current copper wire)

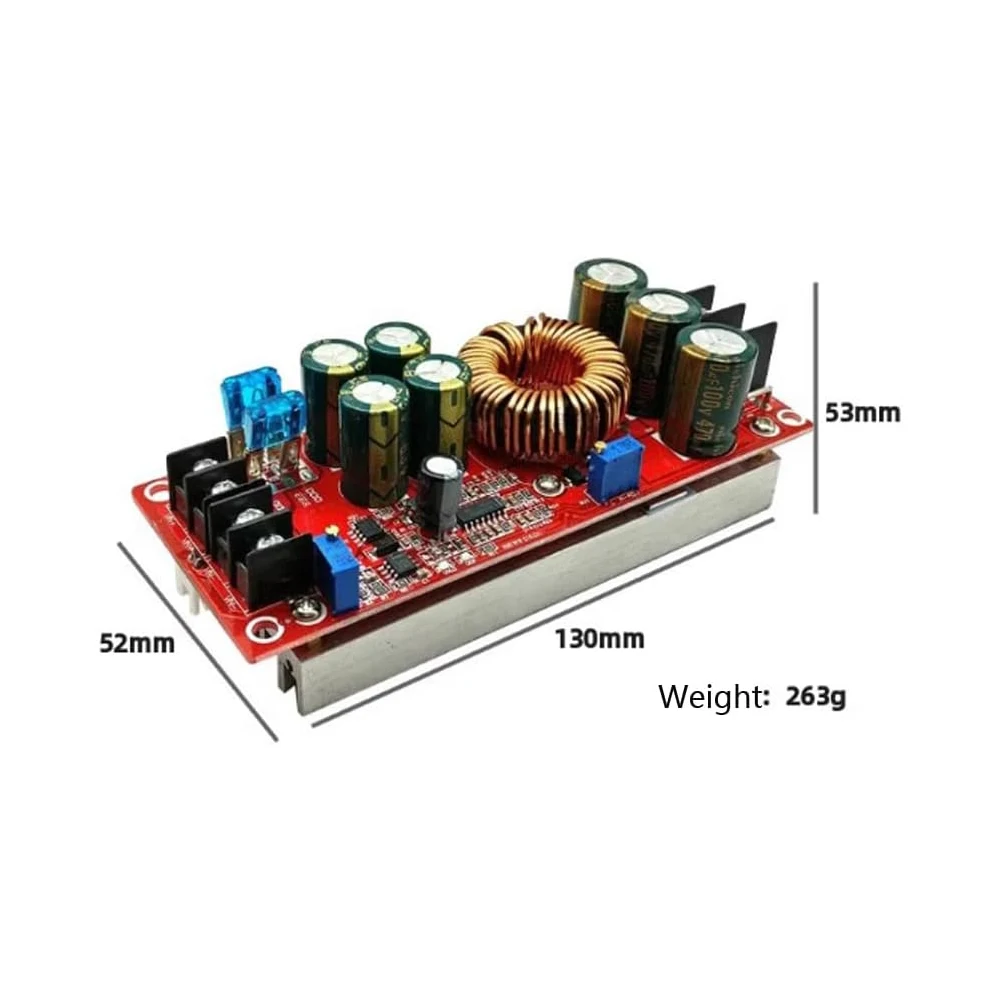

Size: 130×64×52mm / 5.12×2.52×2.04″
Package Includes:
1 x Boost Module
