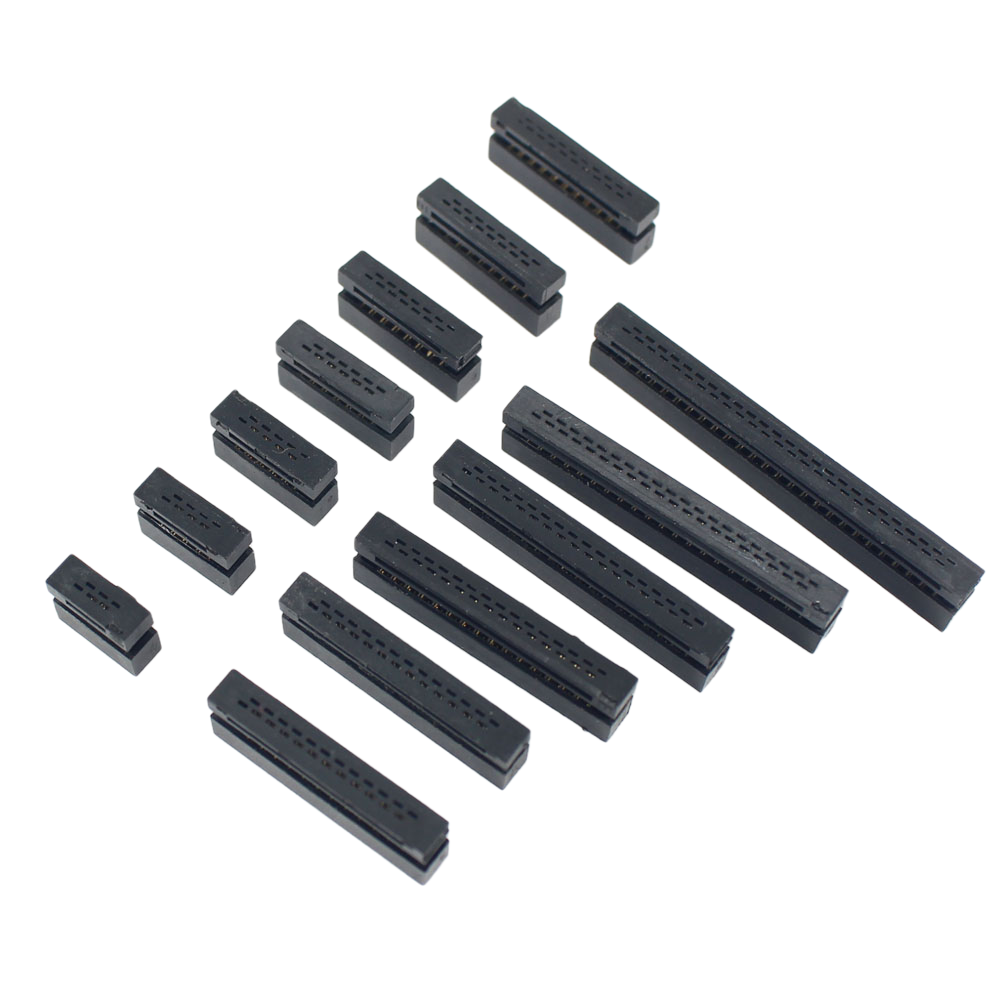

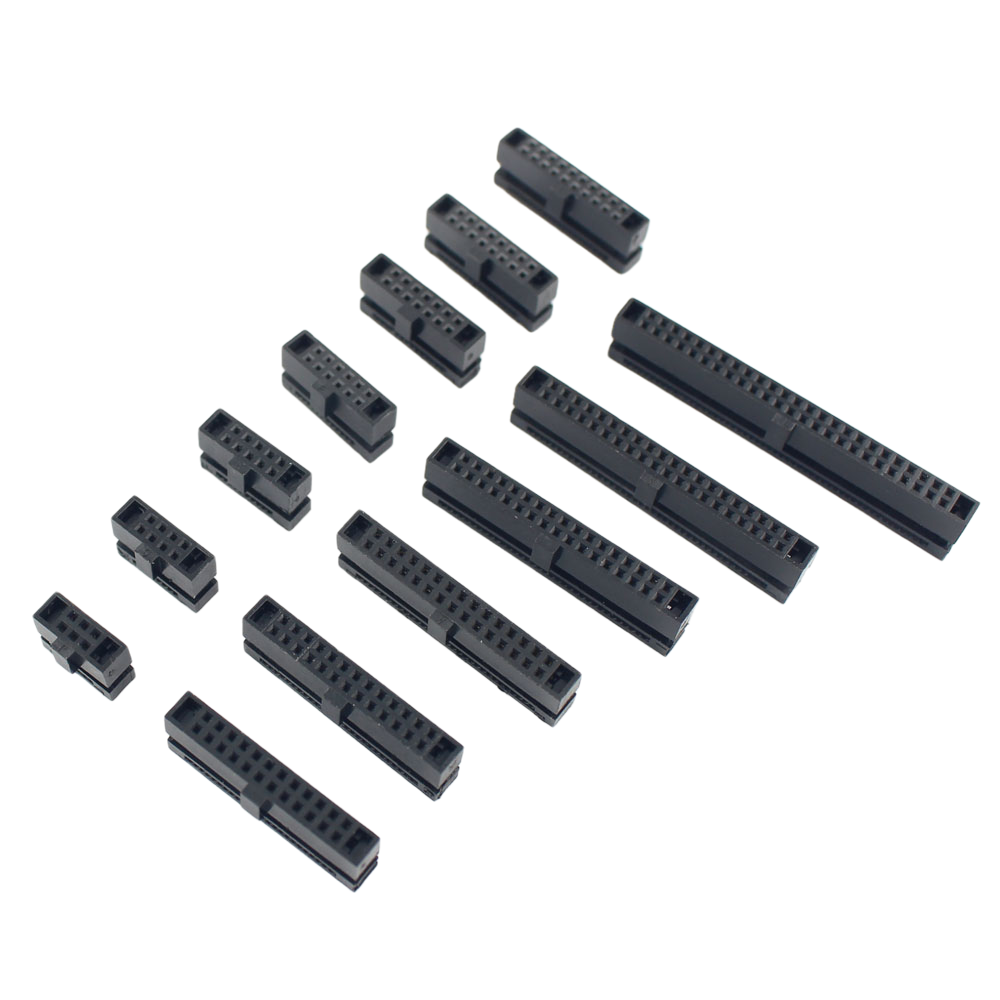

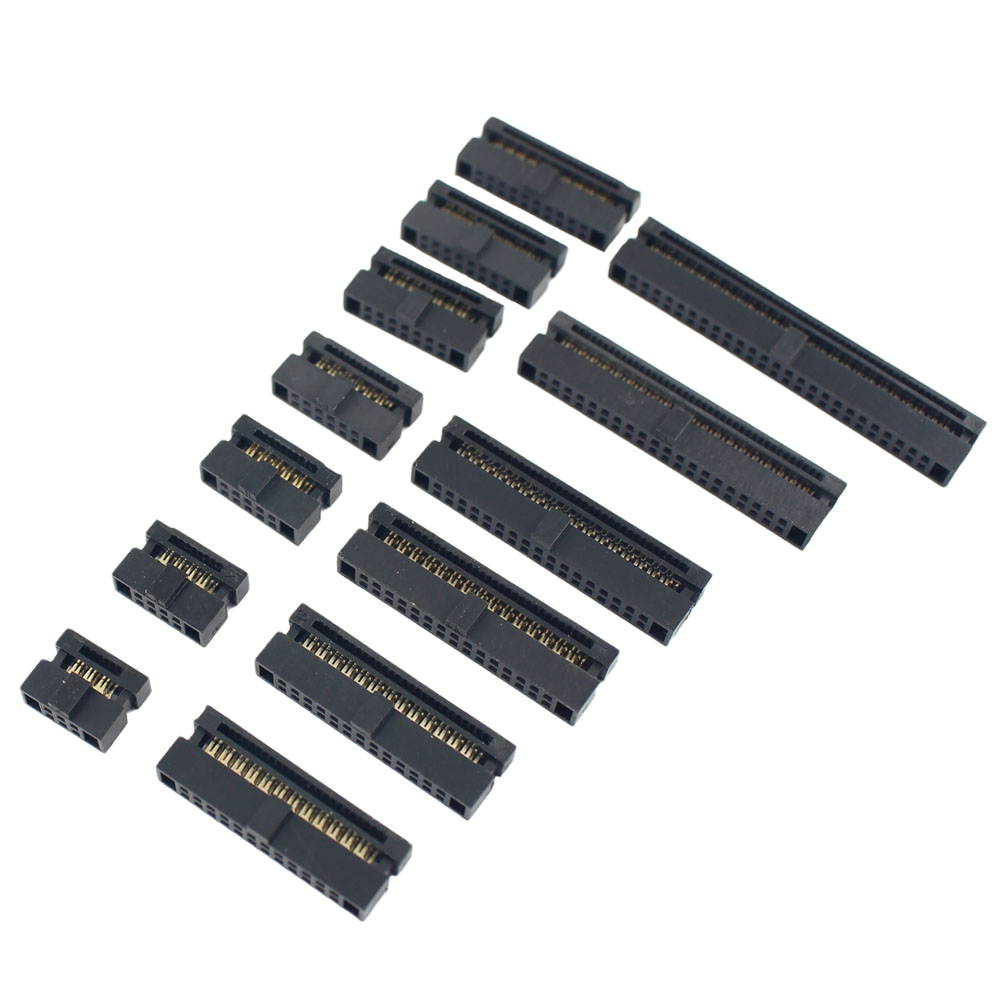

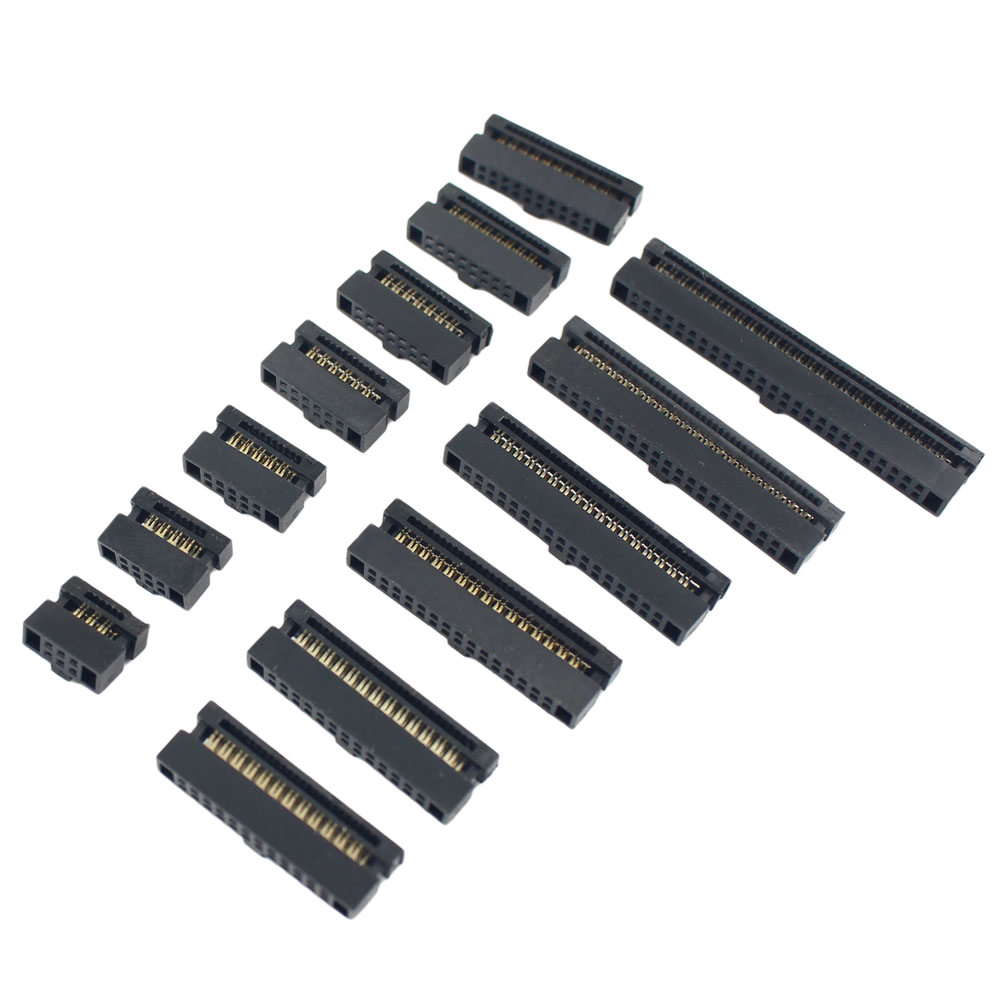

1.27mm FC 6 8 10 12 14 16 20 24 26 30 34 40 50 Pin IDC Female Header Socket Connector For 0.635mm Pitch Flat Cable

SKU: V10937PUNWPA

¥21.00 – ¥53.00

9422 Items sold in last week
Add to compare

Payment Methods:

Description

Features:
Pitch: 1.27mm
Gender: Female
Connector type: IDC
Type of Row: Double-Row
Use for 0.635mm(0.025″) pitch flat cable->0.635mm Pitch flat cable
Specifications:
Current Rating: 1AMP
Operation Temperature: -40°C to +105°C
Contact Resistance: 20mΩ Max. at DC 100mA
Insulation Resistance: 1000MΩ Min. at 500V DC
Withstanding Voltage: 500V AC/rms 50Hz For 1 minute
Material:
Insulator Material: Glass Fiber PBT UL94V-0, Black
Contact: Phosphor Bronze T=0.15
Plating: Whole Gold plating over Nickel
Package Included:
10pcs 1.27mm FC IDC Female Header Socket Connector

Specification

Weight 0.019 kg

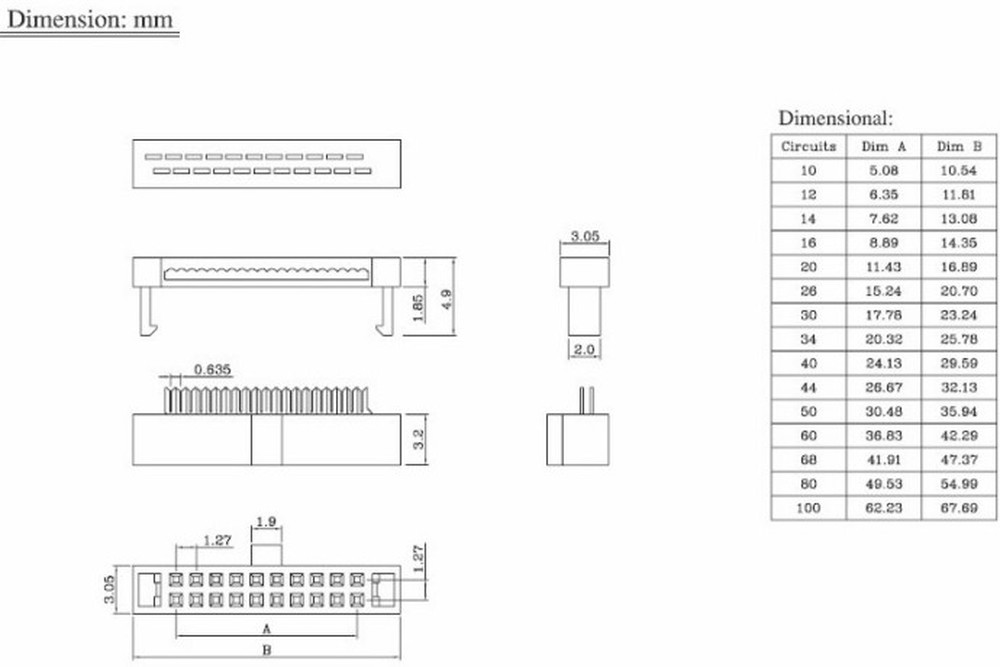

Dimensions 13 × 18 × 4 mm
