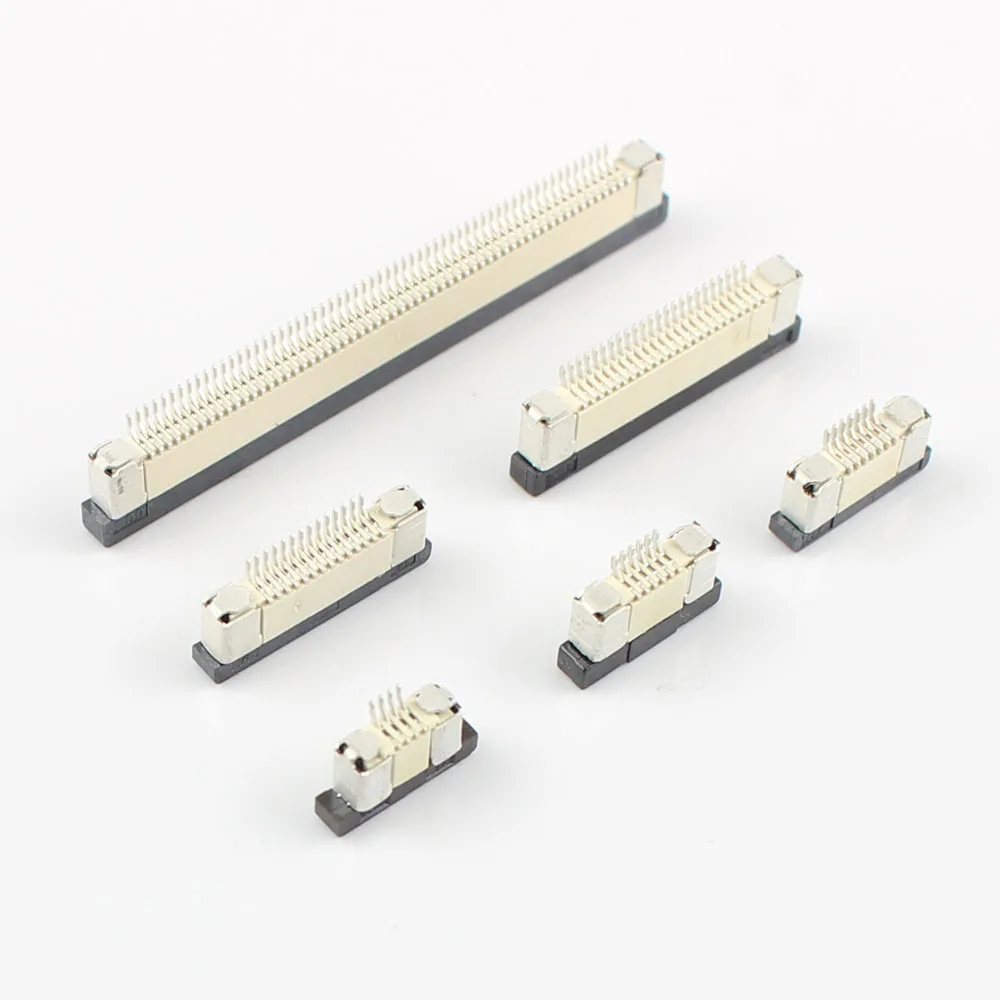

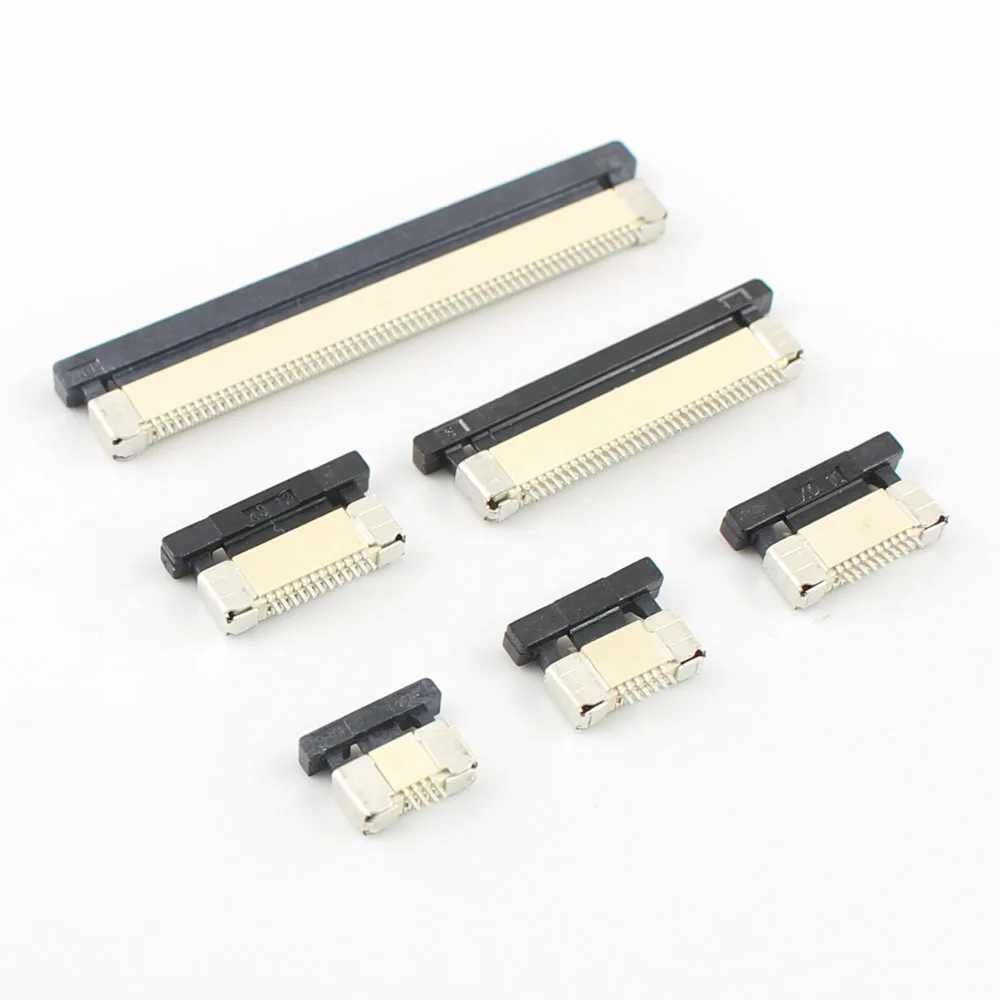

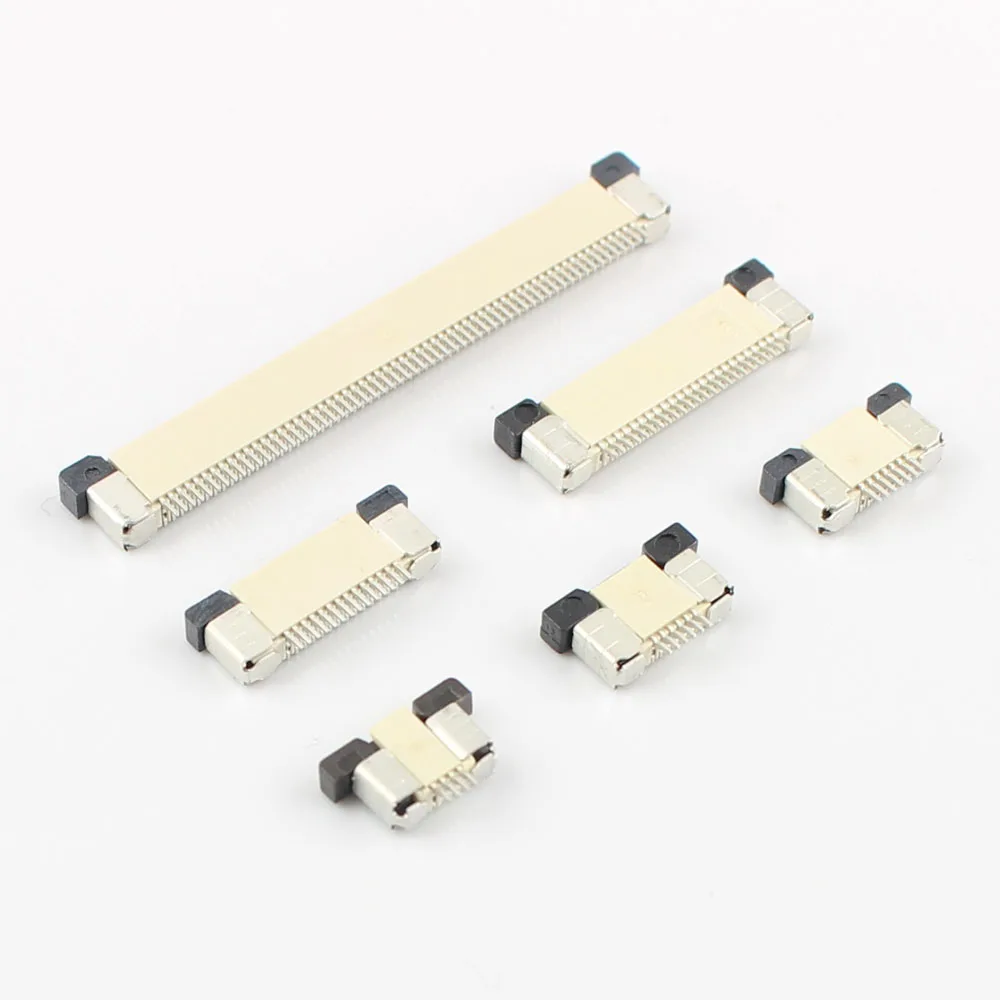

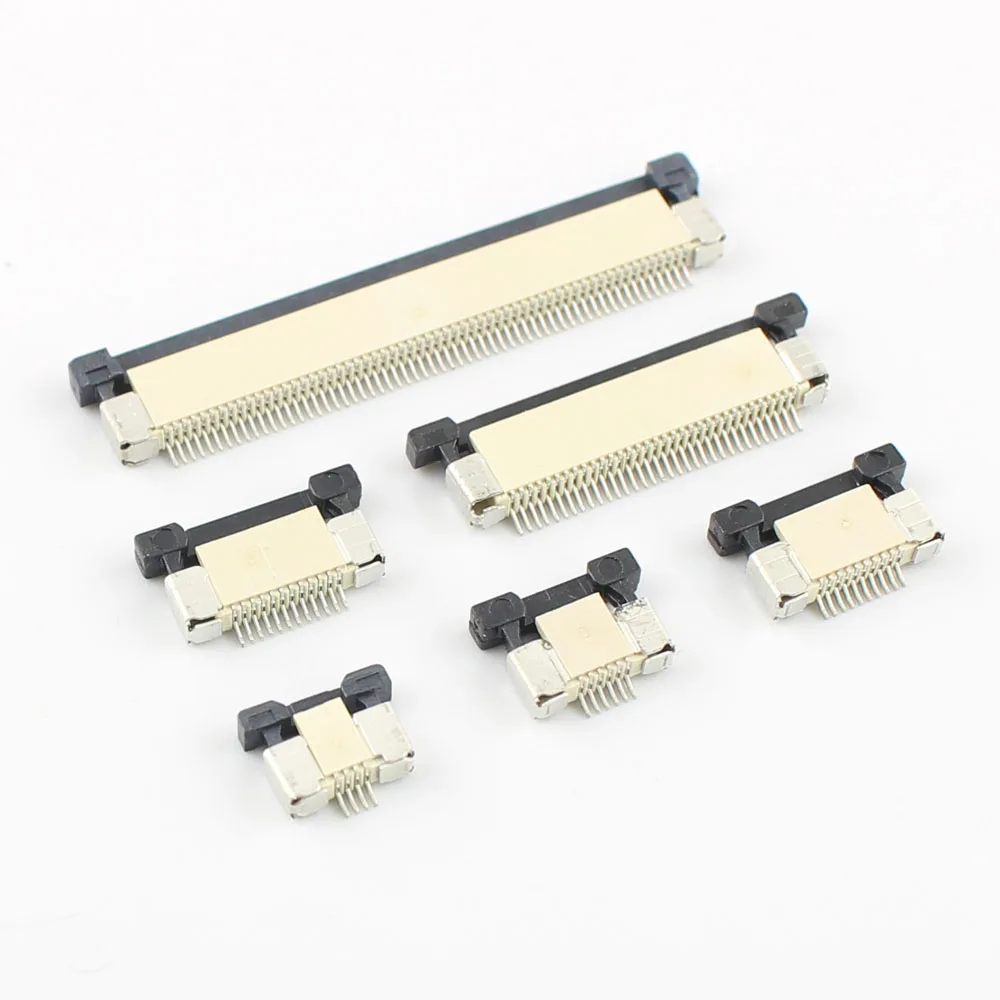

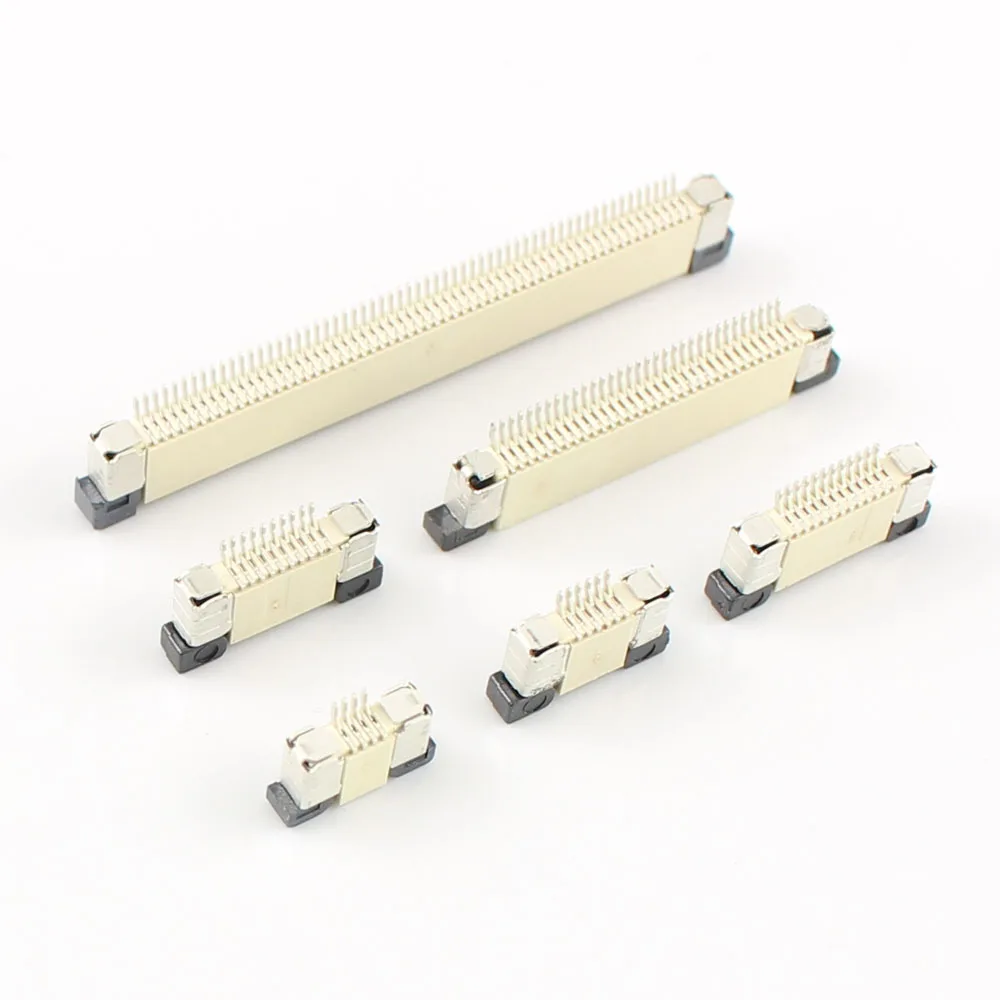

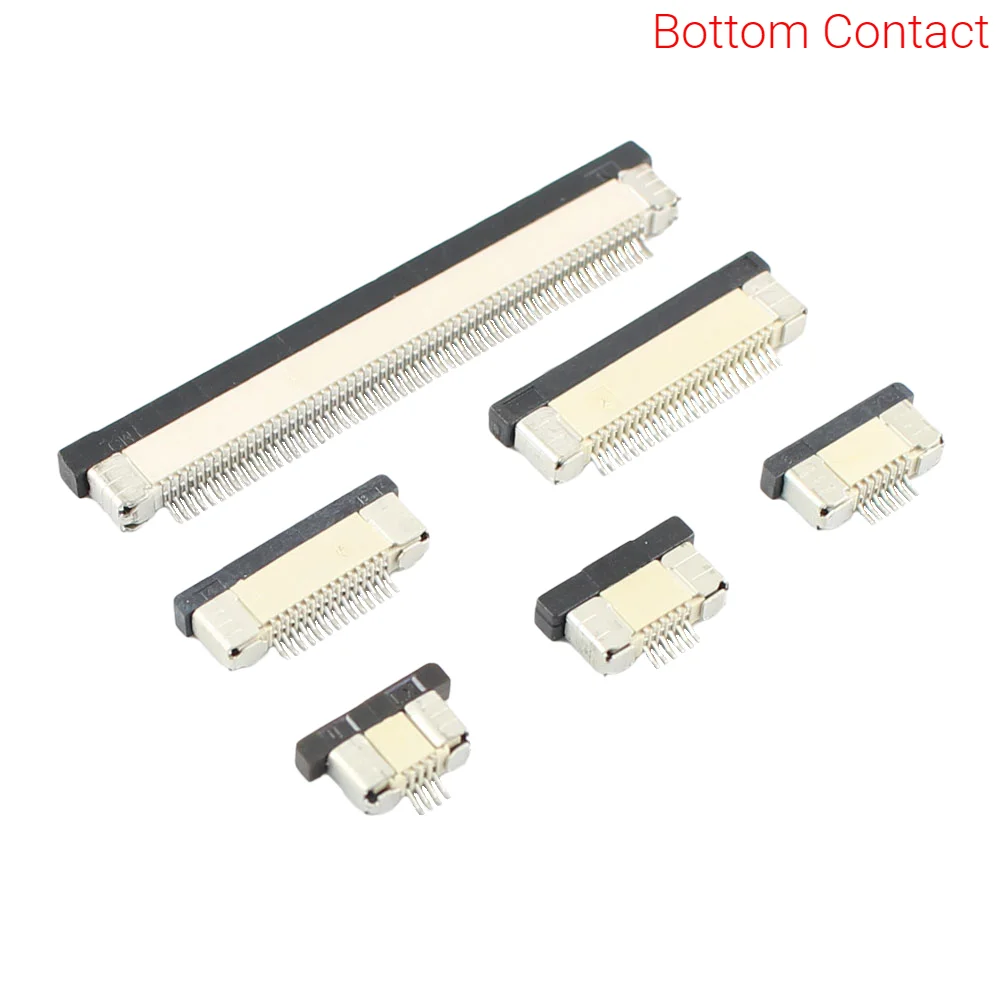

10pcs FPC FFC 0.5mm Pitch Drawer Flat Cable Connector Top / Bottom Contact 4P 5P 6P 8P 10P 12P 14P 16P 20P 16P 30P 32P 40P 45P

SKU: 5D00UY5L2LJV

Price range: ¥10.00 through ¥24.00

1957 Items sold in last week

Connector Type

Pins

Clear

Add to compare

Payment Methods:

Description

Features:
BRAND NEW!
Pitch: 0.5mm
Type: Drawer Type

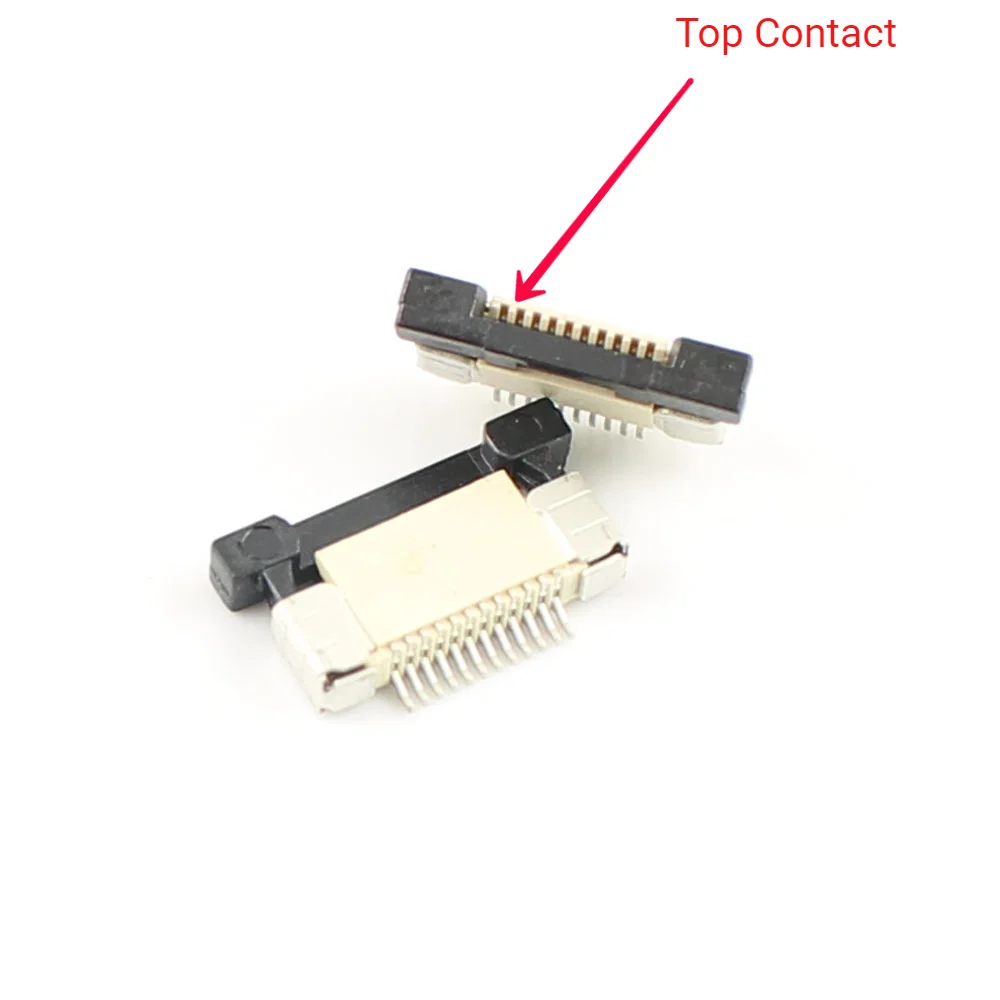

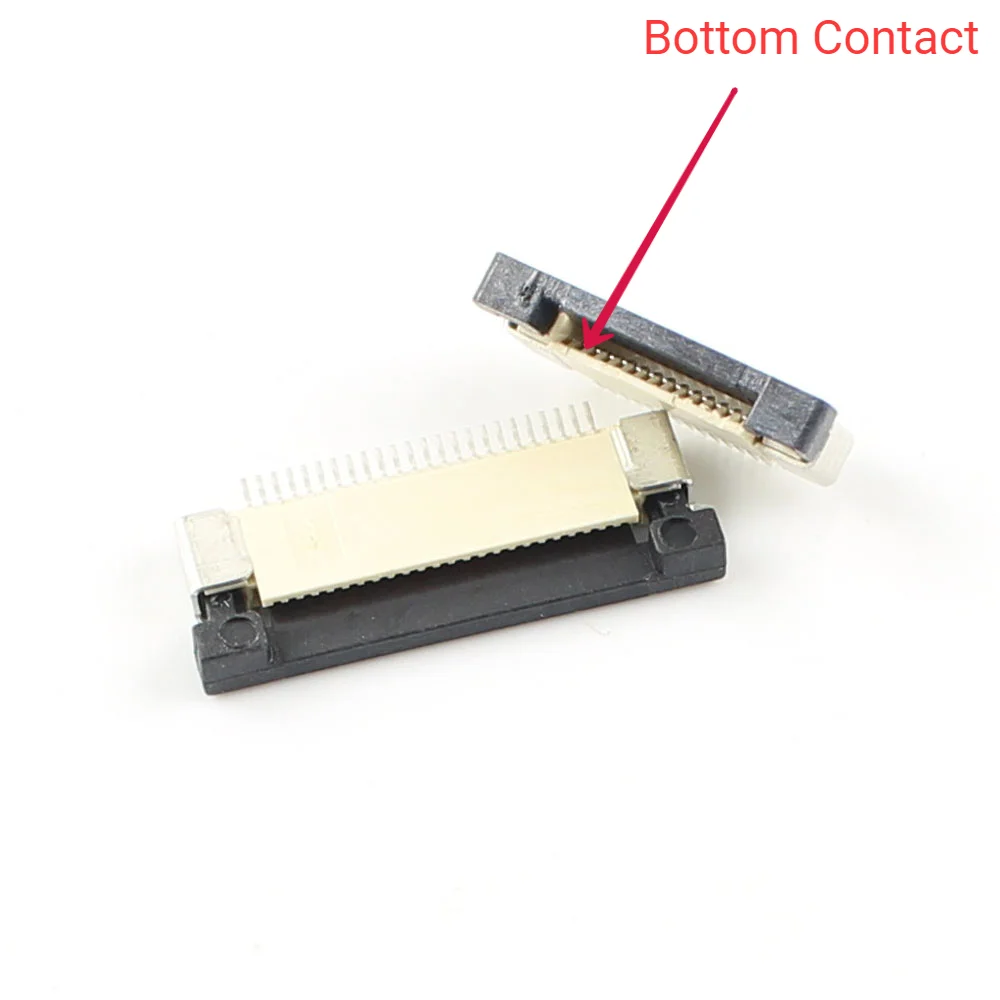

Contact Type: Top Contact / Bottom Contact
Number of pin: 4/5/6/7/8/9/10/12/14/15/16/18/20/22/24/25/26/28/30/32/33/34/35/36/40/45P
Material Description:
Terminal: Phosphor Bronze Tin-plated
Fitting Nail: Brass Tin-plated
Housing: Thermoplastic(UL94V-O)
Slider: Thermoplastic(UL94V-O)
Electrical Characteristics:
Current Rating: 0.4A AC/DC
Voltage Rating: 50V AC/DC
Temperature Range: -25 to 85 degrees
Withstand Voltage: 500V AC/Minute
Contact Resistance: ≤20m Ohm
Insulation Resistance: ≥500M Ohm
Relative Humidity: 93%+40°C
Package Included:
10pcs FPC FFC 0.5mm Pitch Drawer Flat Cable Connector Top / Bottom Contact
