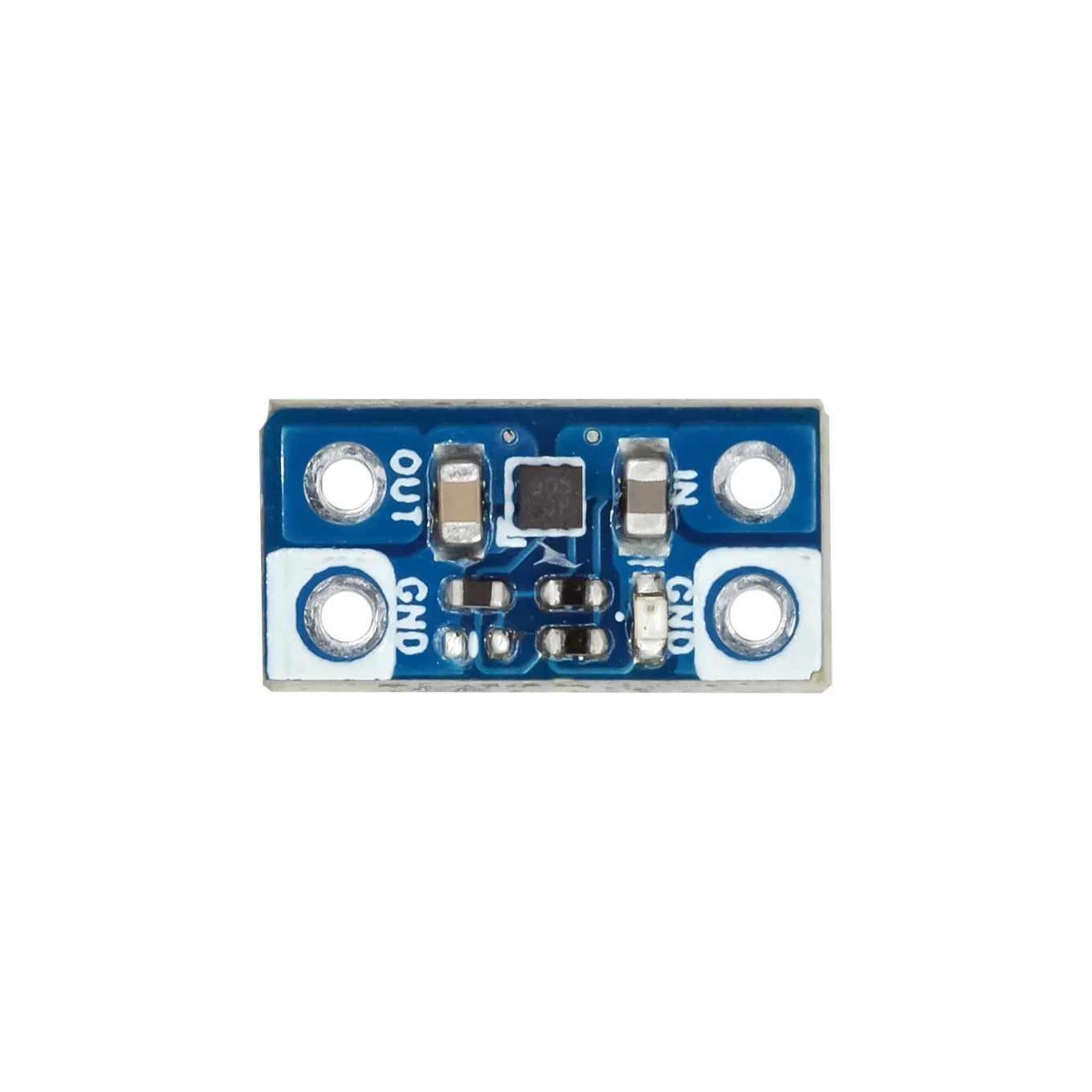

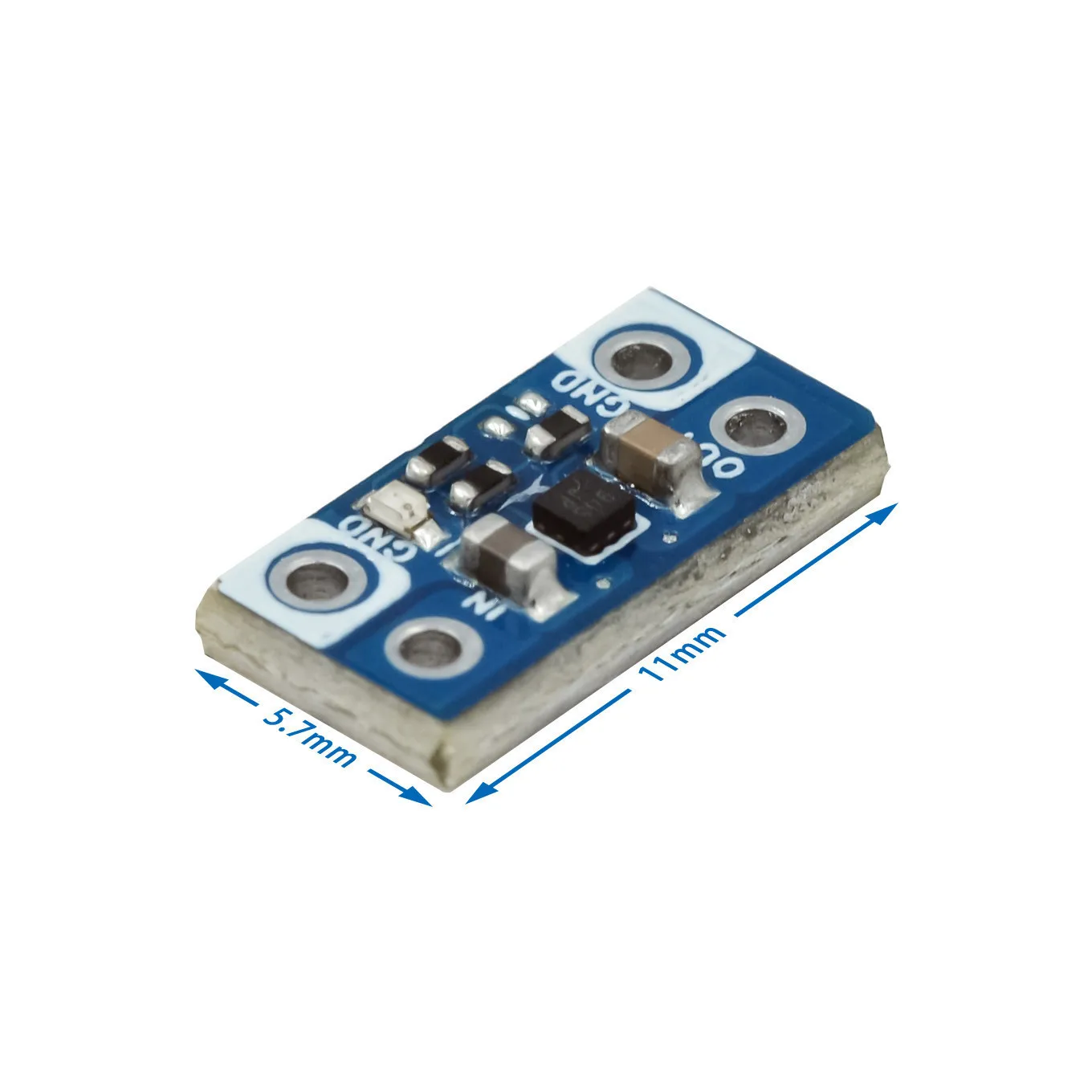

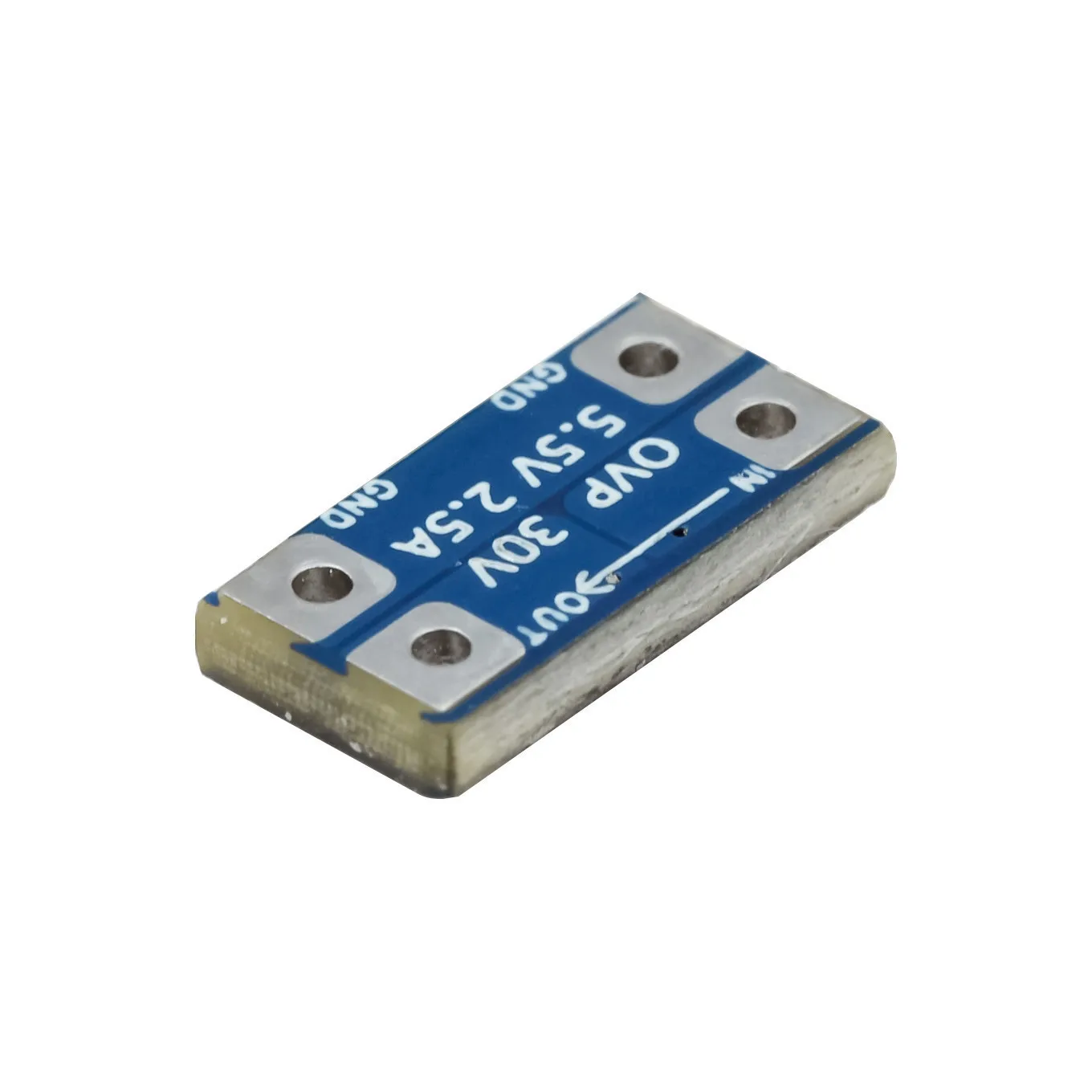

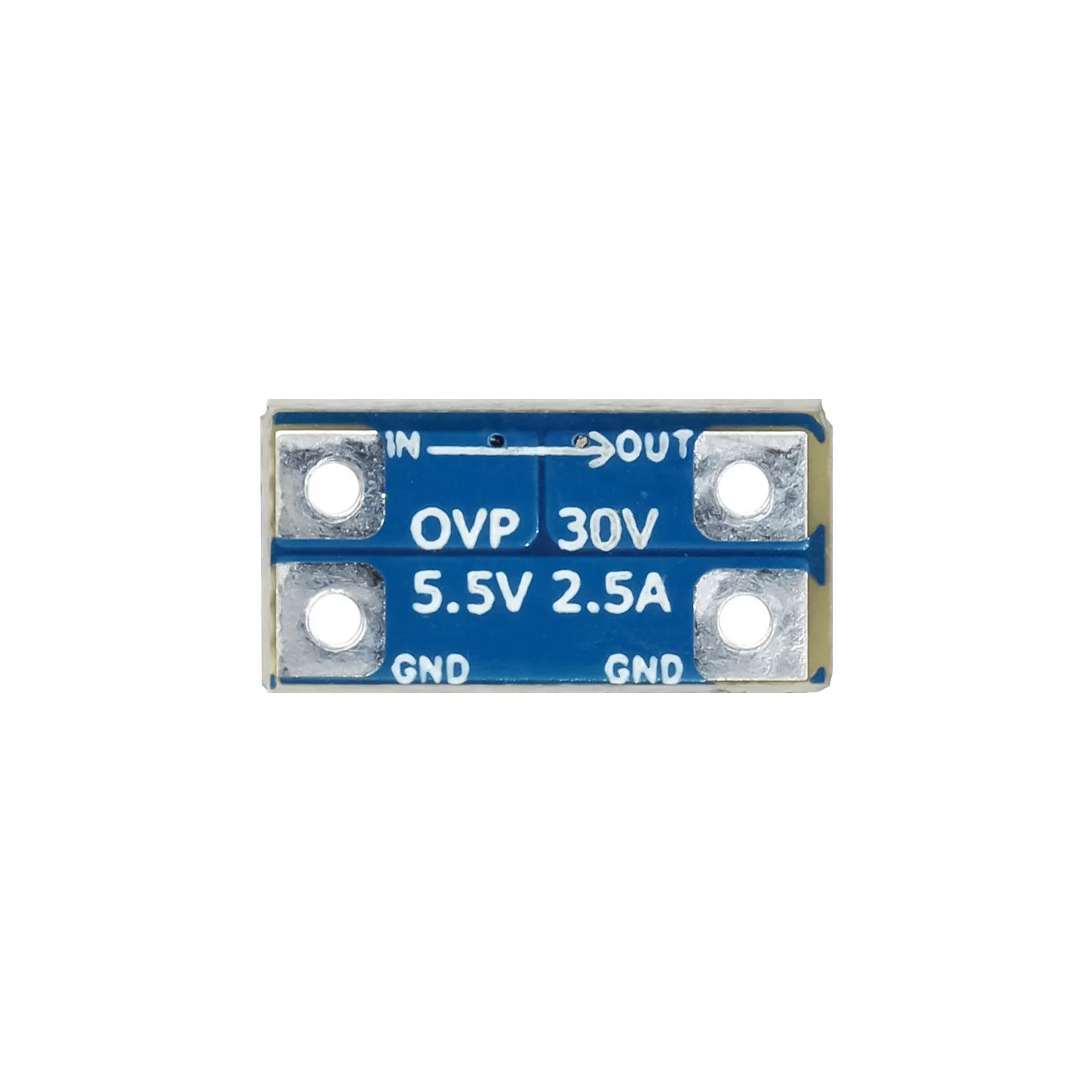

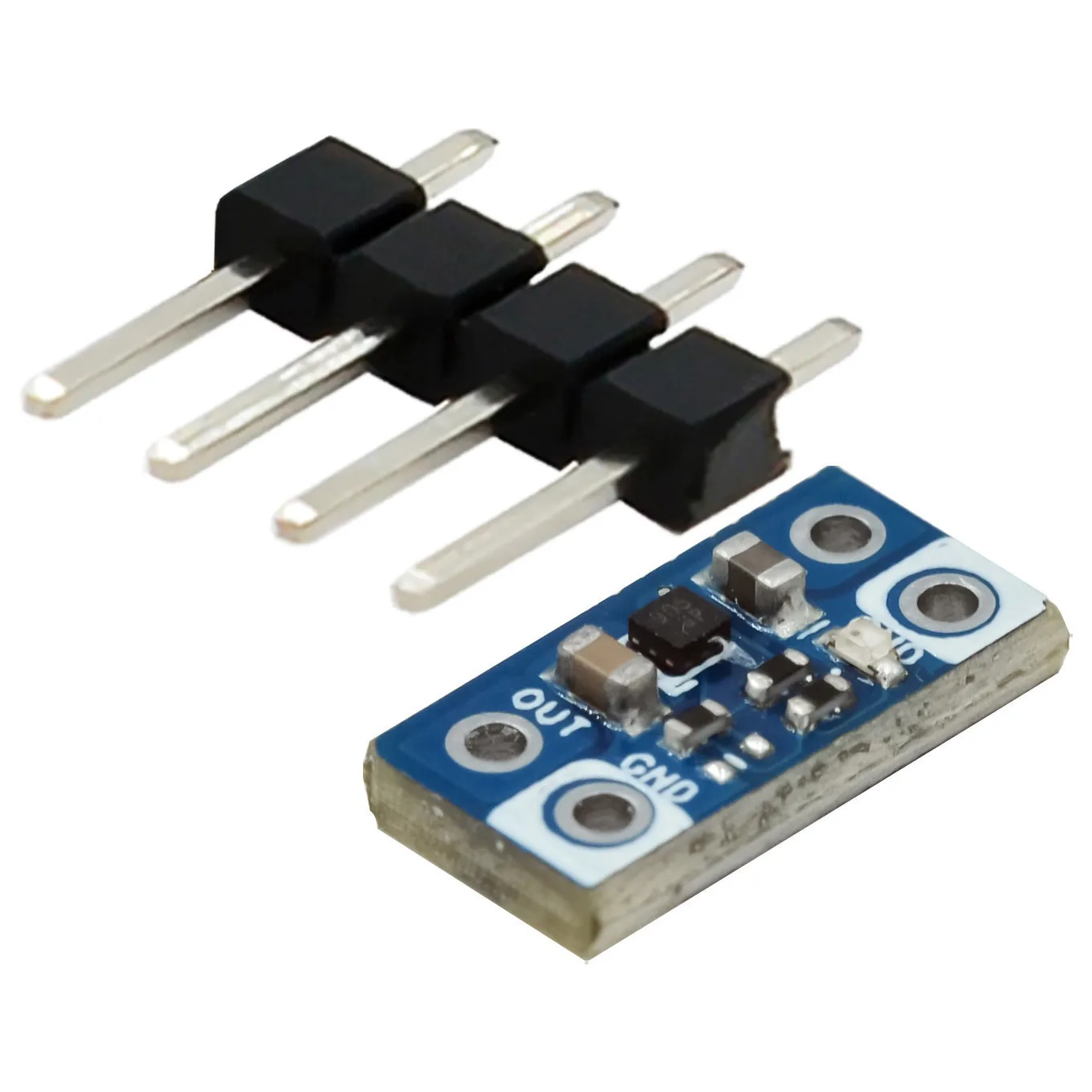

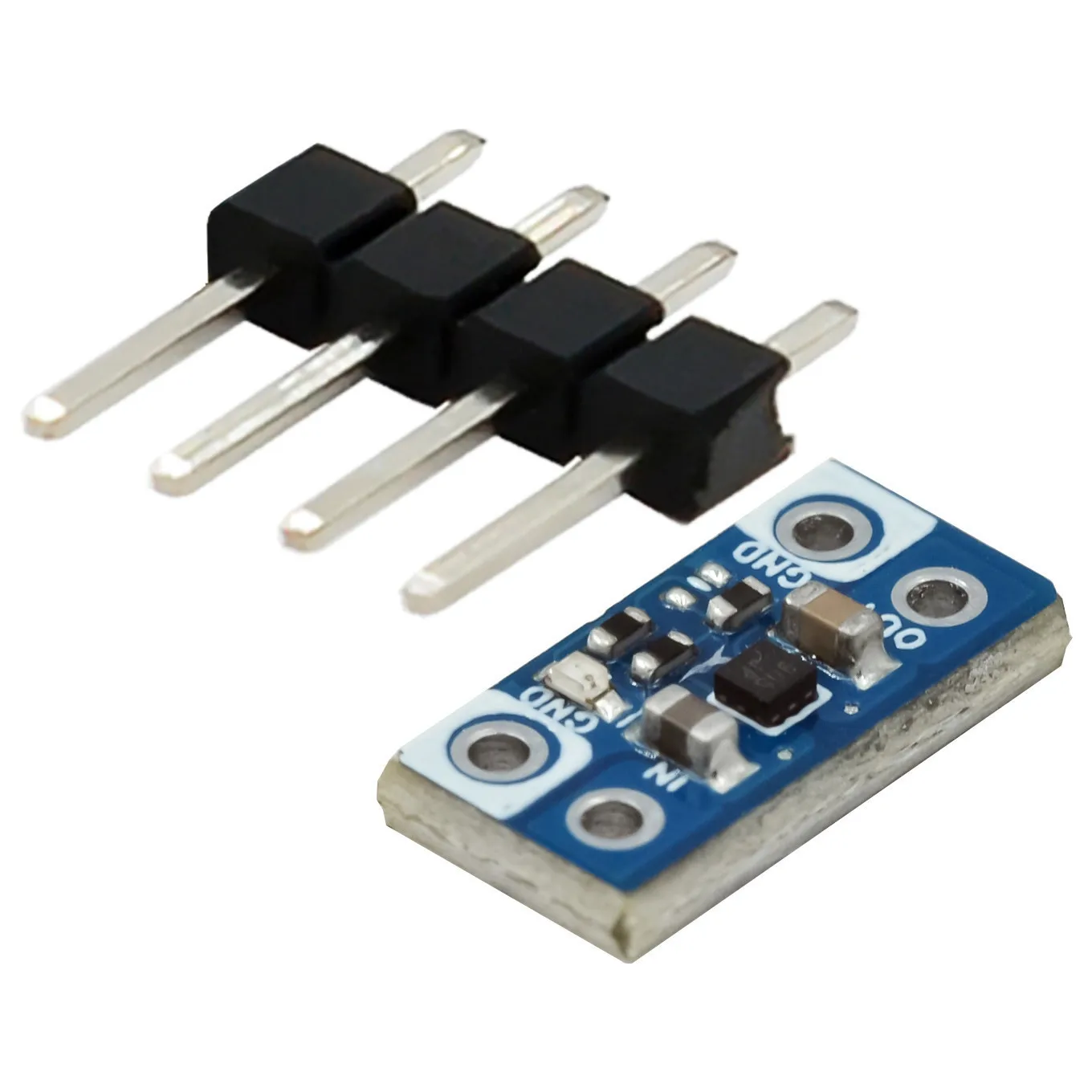

5pcs/1pc Over-Voltage Protection Module OVP 5.5V 2.5A 30V Power-protection Mini

Description

Overvoltage Protection Module OVP

Used to protect 5V power supply devices, such as core boards, to prevent the voltage of the power input port from suddenly rising, causing damage to the device

Parameter:

Input voltage IN: 5V – 30V

Output current OUT: 2.5A continuous, 5A peak

Overvoltage protection point OVP: 5.52V

Internal resistance Ron: 40mΩ Typ.

Overvoltage shutdown time Toff: 50nS

Function:

When the module is connected to a 5V power supply, the red LED lights up briefly and then goes out, the OUT port outputs 5V, and the input voltage IN is equal to the output voltage OUT

When the power supply of the module is greater than 5.52V, the red LED lights up, the OUT port has no output, the shutdown time is 50nS, and the overvoltage protection is turned on
