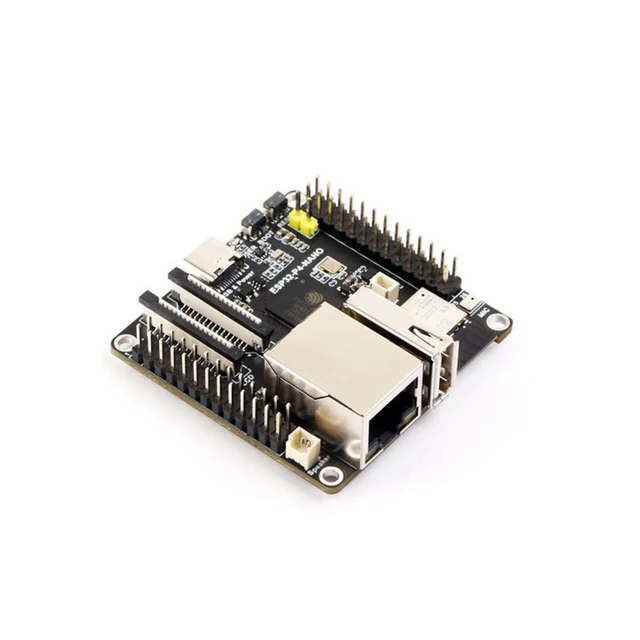

ESP32-P4-NANO High-performance Development Board Based On ESP32-P4 Chip With RISC-V Dual-core And Single-core Processors

About Us
We are an original equipment manufacturer that integrates solutions and products. Welcome to discuss cooperation! contact me:+852 5360 7032(whatsapp)
Product Description
ESP32-P4-NANO High-performance Development Board, Based On ESP32-P4 Chip With RISC-V Dual-core And Single-core Processors, Supports Wi-Fi 6 And Bluetooth 5/BLE
ESP32-P4-NANO Development Board
Based on ESP32-P4 chip with RISC-V dual-core and single-core processors

Rich Human-machine Interfaces
Kit Selection
Kit Connection Examples
10.1″ DSI Capacitive Touch Display
IPS Screen, Optical Bonding Toughened Glass Panel, 800×1280 Resolution, With 178° Wide Viewing Angle. Supports 10-Point Touch, provides clear image and excellent visual experience
* the 10.1inch DSI LCD is only included in the ESP32-P4-NANO-KIT-D
Raspberry Pi Camera (B)
5MP | Manual Focus

Compatible with Raspberry Pi series boards
Development Board Introduction
This product is a high-performance development board based on the ESP32-P4 chip with RISC-V dual-core and single-core processors, and features rich Human-Machine Interfaces, including MIPI-CSI (with integrated Image Signal Processor) and MIPI-DSI interface. It supports a comprehensive range of commonly used peripherals including SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, and TWAI. Additionally, it offers support for USB OTG 2.0 HS, Ethernet, and SDIO Host 3.0, facilitating high-speed connectivity.

The ESP32-P4 chip integrates the Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. Specifically designed for high-performance and high-security applications, the ESP32-P4-NANO meets the advanced requirements of Human-Machine Interfaces, efficient edge computing, and increased IO-connectivity.

Key features include:
● High-performance MCU with RISC-V 32-bit dual-core and single-core processors
● 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP SRAM, 8 KB TCM
● Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder
● 32MB PSRAM in the chip’s package, with onboard 16MB Nor Flash
● Commonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 TF card slot, microphone, speaker header and RTC battery header, etc.
● Adtaping 2*2*13 GPIO headers with 28 x programmable GPIOs
● Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation

Highly Integrated And Powerful Performance
Adopts ESP32-P4 high-performance MCU
WiFi 6 And Bluetooth Module
Onboard ESP32-C6-MINI module to extend 2.4GHz Wi-Fi 6 and Bluetooth 5/BLE for ESP32-P4, using SDIO interface protocol for communication, stable connection and efficient transmission.
Reserved PoE Module Header
More Flexible For Power Supply
Optional For PoE Module, Supports PoE Power Supply
Provides Both Network Connection And Power Supply for ESP32-P4-NANO board In Only One Ethernet Cable
* the PoE module is optional, and the switch in the picture above is NOT included.
What’s On Board
Pin Definition
Outline Dimensions
