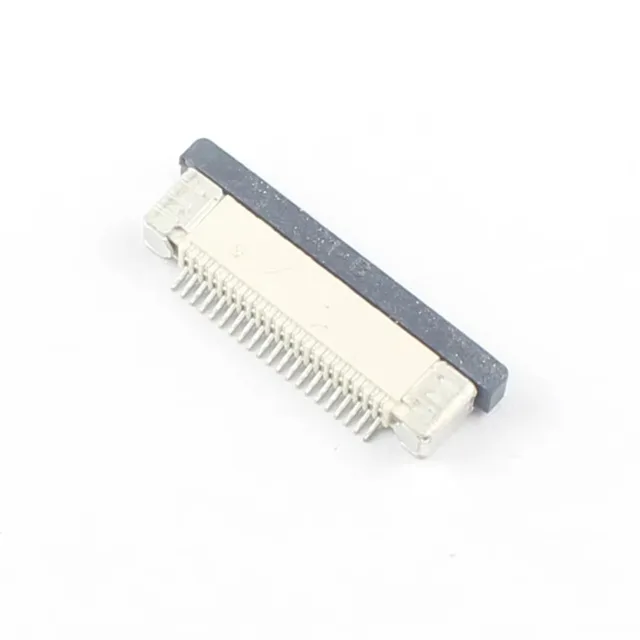

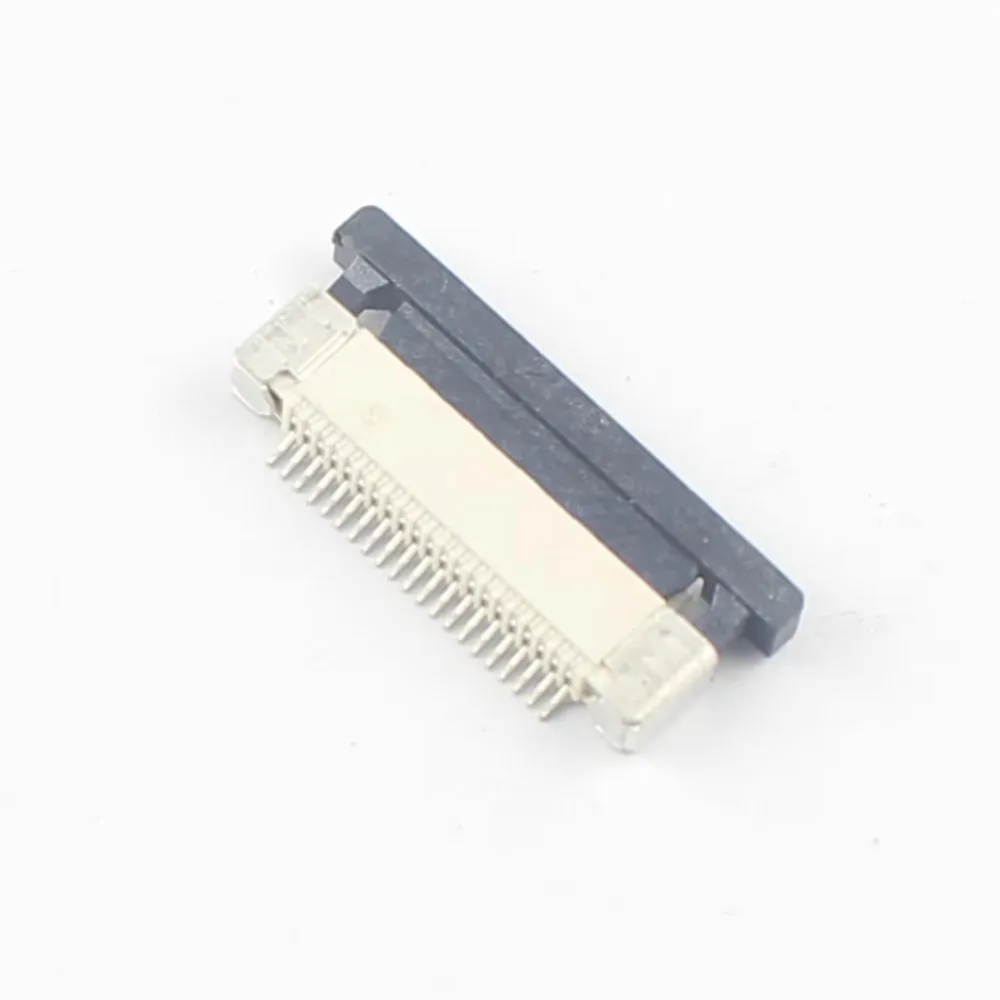

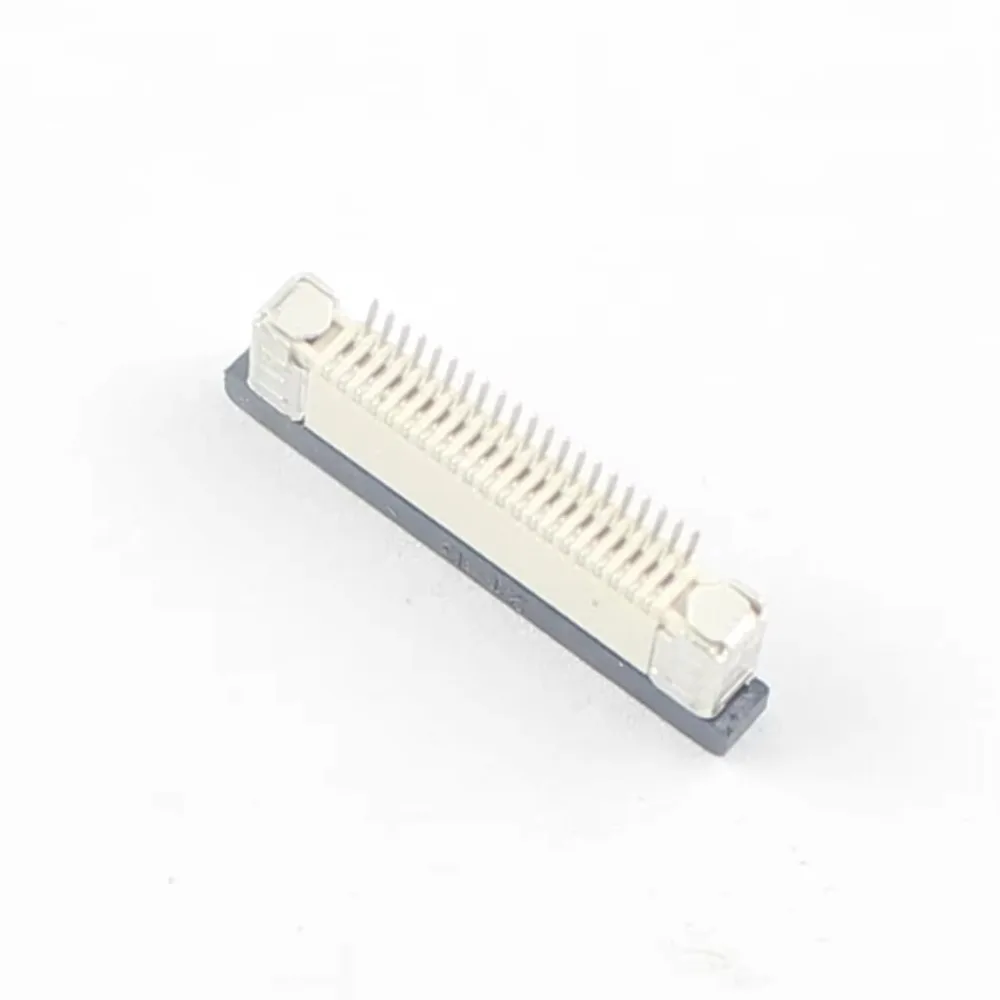

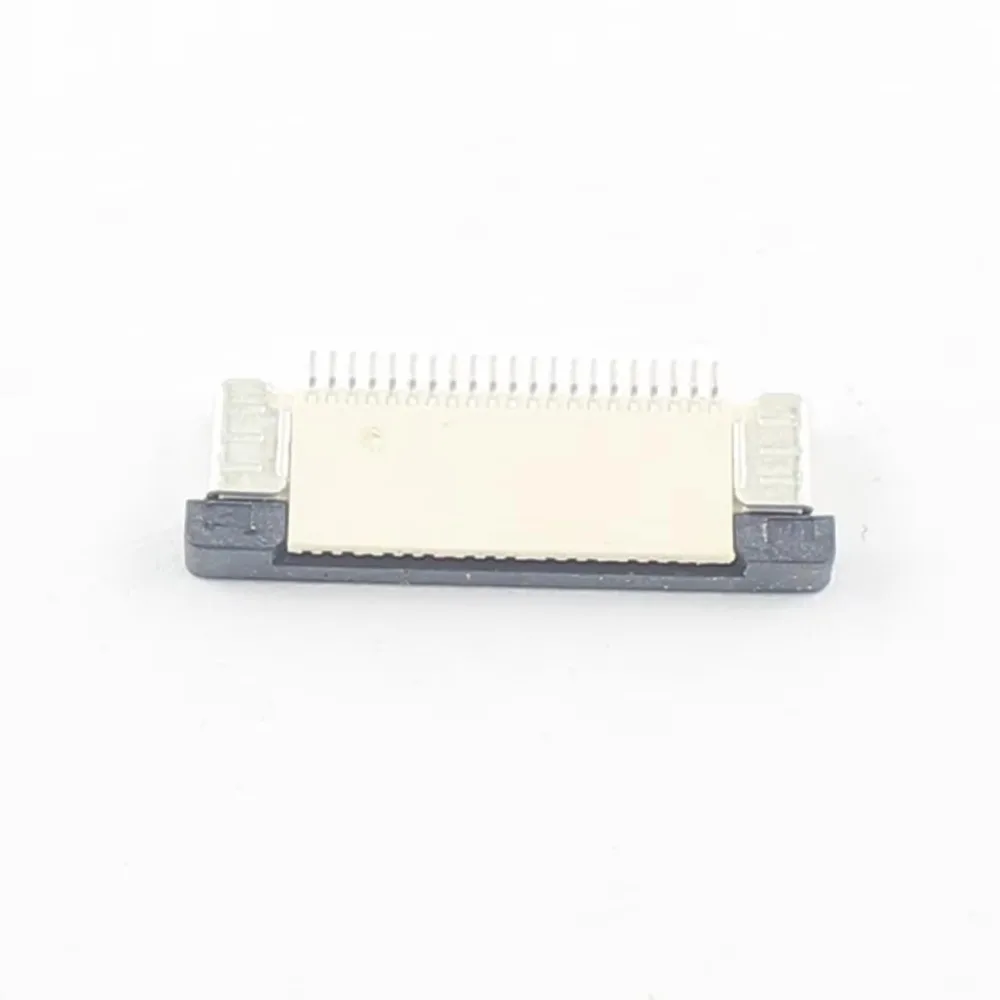

FPC FFC 0.5mm Pitch 21 Pin Drawer Type Ribbon Flat Connector Bottom Contact

Features:
Pitch: 0.5mm
Type: Drawer Type
Contact Type: Bottom Contact
Pin: 21 Pins
Material Description:
Terminal: Phosphor Bronze Tin-plated
Fitting Nail: Brass Tin-plated
Housing: Thermoplastic(UL94V-O)
Slider: Thermoplastic(UL94V-O)
Electrical Characteristics:
Current Rating: 0.4A AC/DC
Voltage Rating: 50V AC/DC
Temperature Range: -25 to 85 degrees
Withstand Voltage: 500V AC/Minute
Contact Resistance: ≤20m Ohm
Insulation Resistance: ≥500M Ohm
Relative Humidity: 93%+40°C
Package Included:
10pcs FPC FFC 0.5mm Pitch 21 Pin Drawer Type Ribbon Flat Connector Bottom Contact
