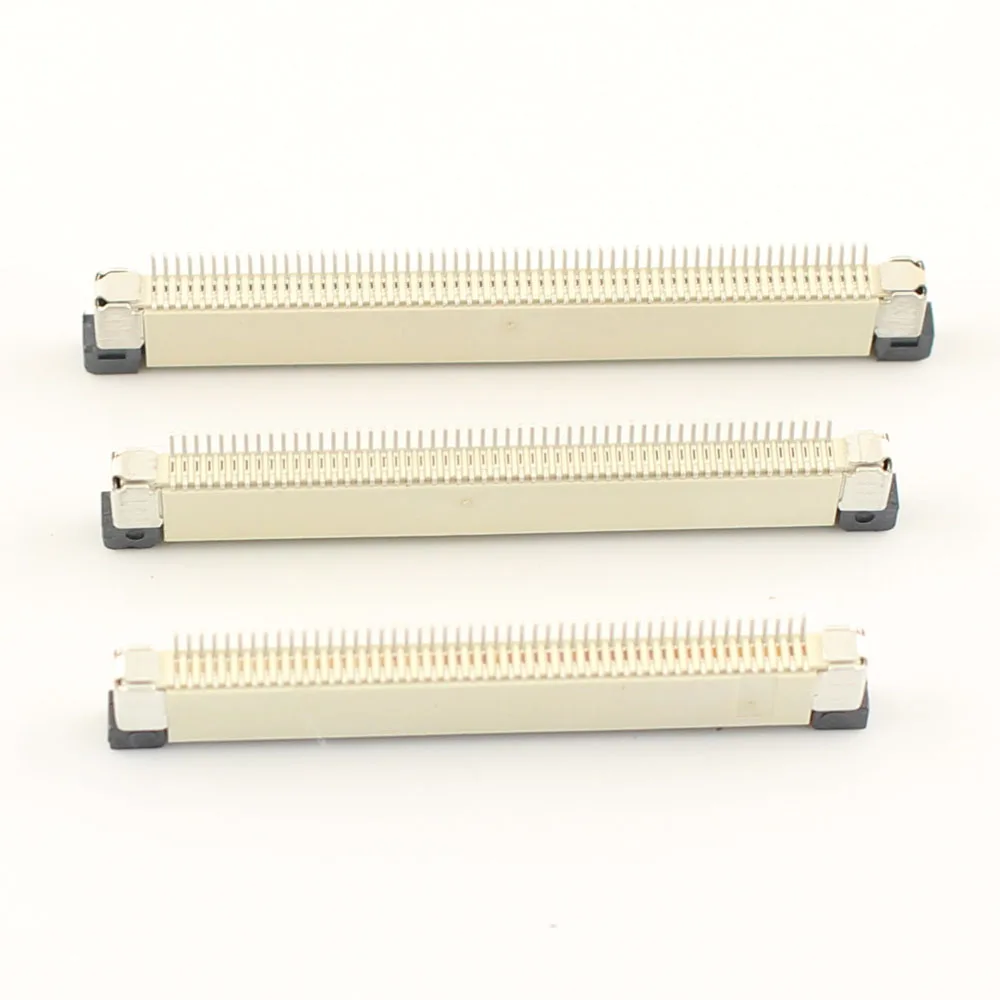

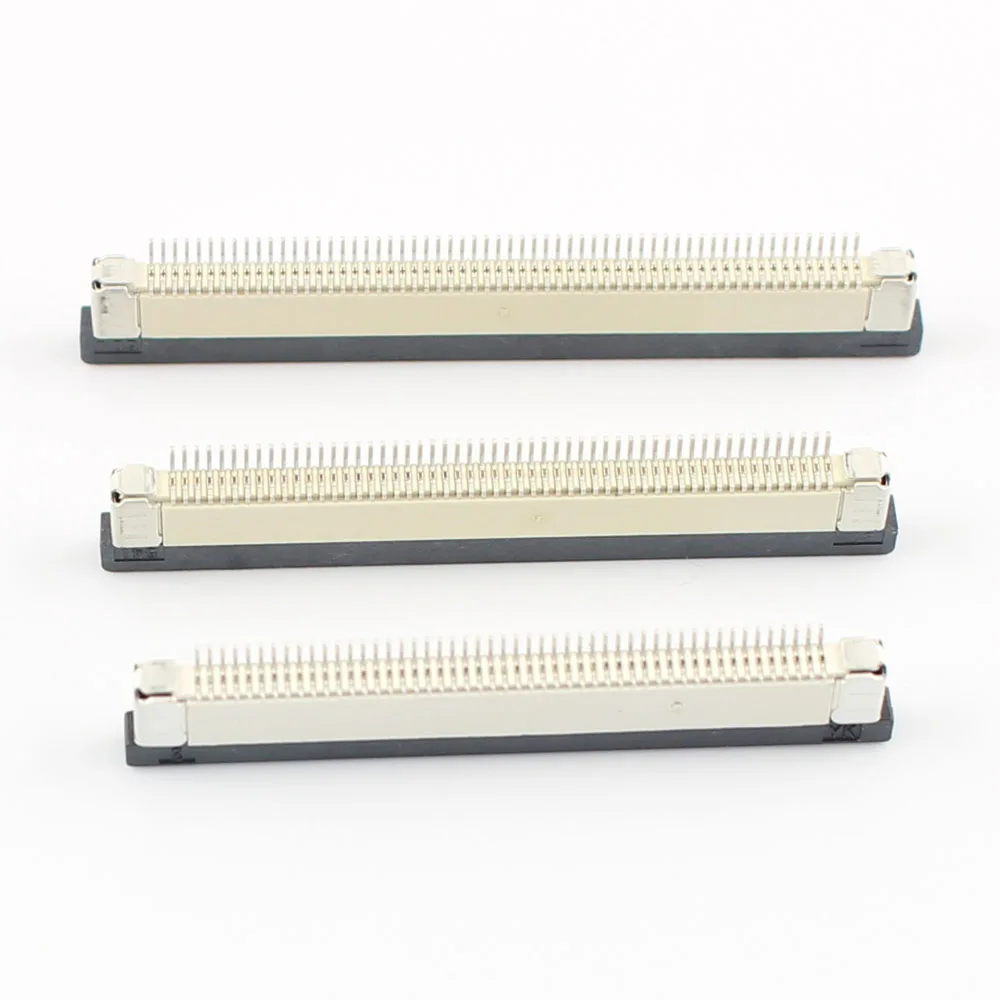

FPC FFC 0.5mm Pitch 50 54 60 Pin Drawer Flat Cable Connector Socket Top / Bottom Contacts 1

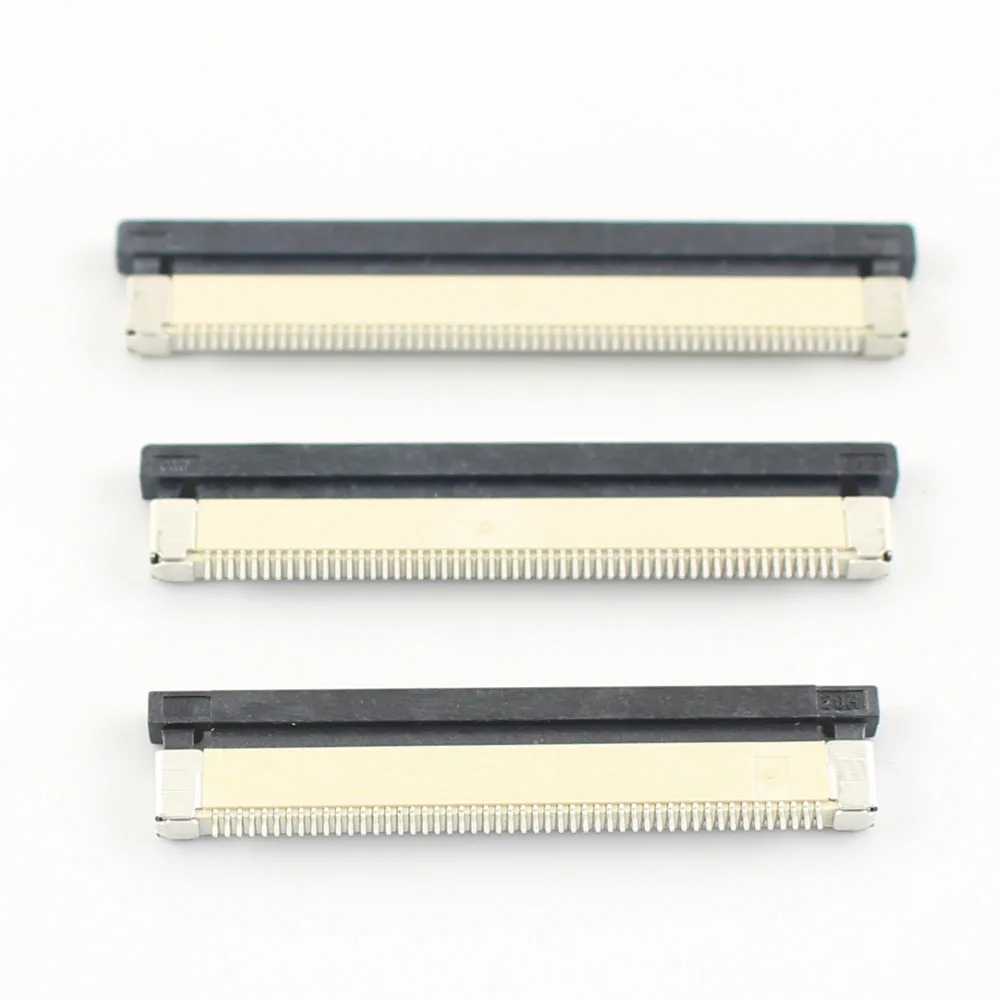

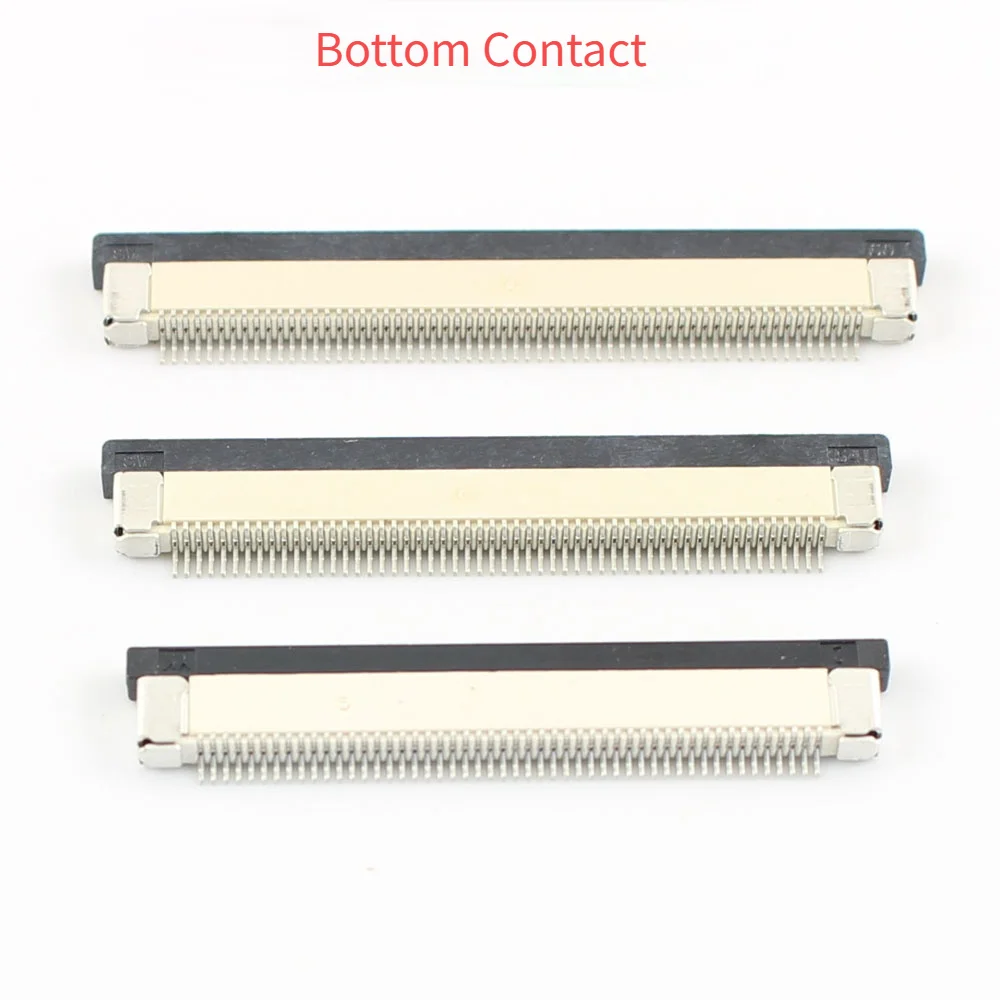

FPC FFC 0.5mm Pitch 50 54 60 Pin Drawer Flat Cable Connector Socket Top / Bottom Contacts 2

Click to enlarge

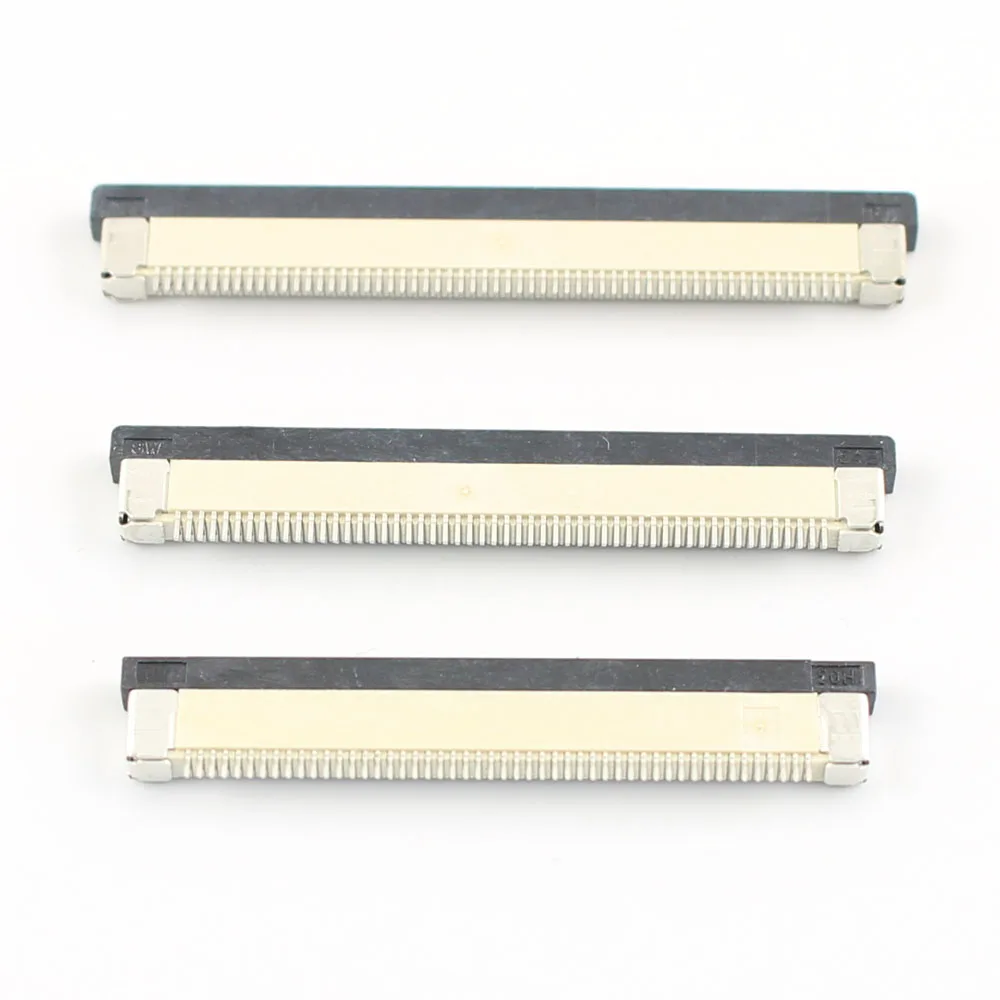

FPC FFC 0.5mm Pitch 50 54 60 Pin Drawer Flat Cable Connector Socket Top / Bottom Contacts 3

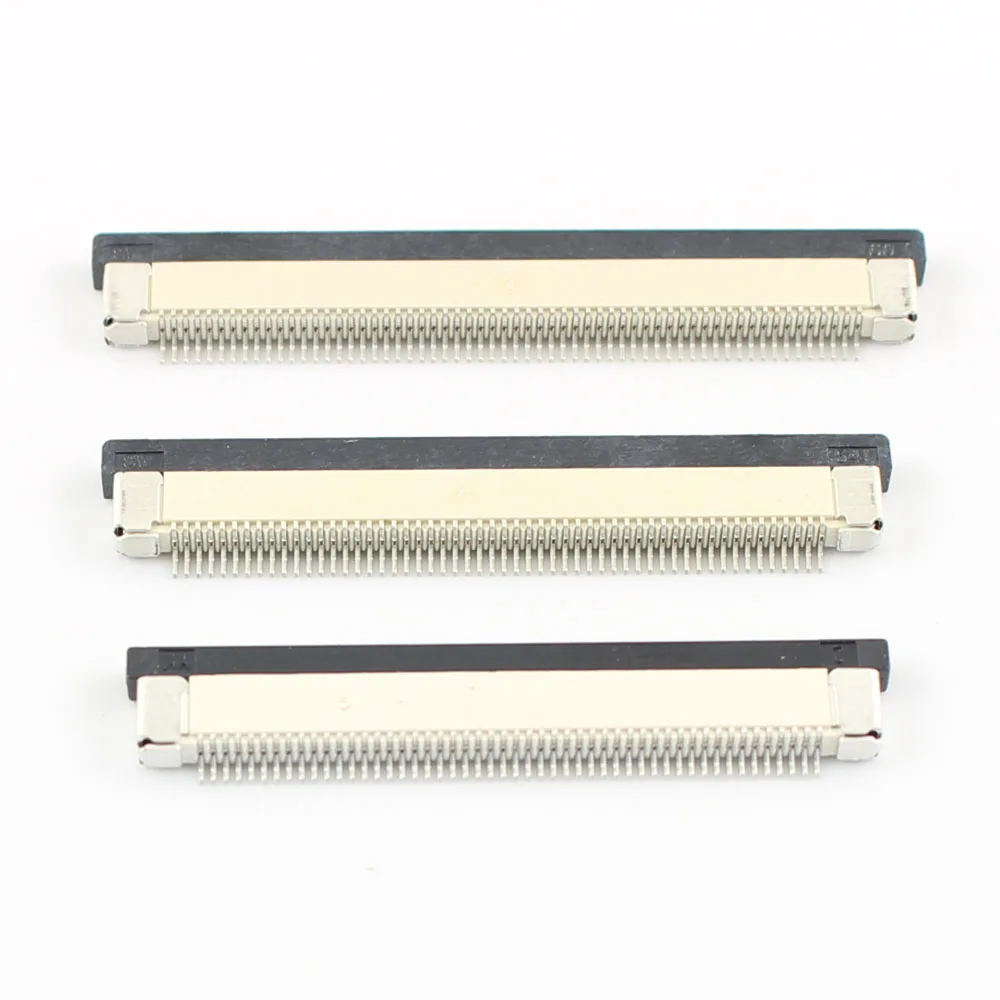

FPC FFC 0.5mm Pitch 50 54 60 Pin Drawer Flat Cable Connector Socket Top / Bottom Contacts 4

FPC FFC 0.5mm Pitch 50 54 60 Pin Drawer Flat Cable Connector Socket Top / Bottom Contacts

Name: FPC FFC 0.5mm Pitch 50 54 60 Pin Drawer Flat Cable Connector Socket Top / Bottom Contacts
SKU: 5N76ZXOBFRF3
Availability: InStock

SKU: 5N76ZXOBFRF3

$3.20 – $3.80

805 Items sold in last week

Connector Type

Pins

Clear

Add to compare

Payment Methods:

Description

Features:
Pitch: 0.5mm
Type: Drawer Type

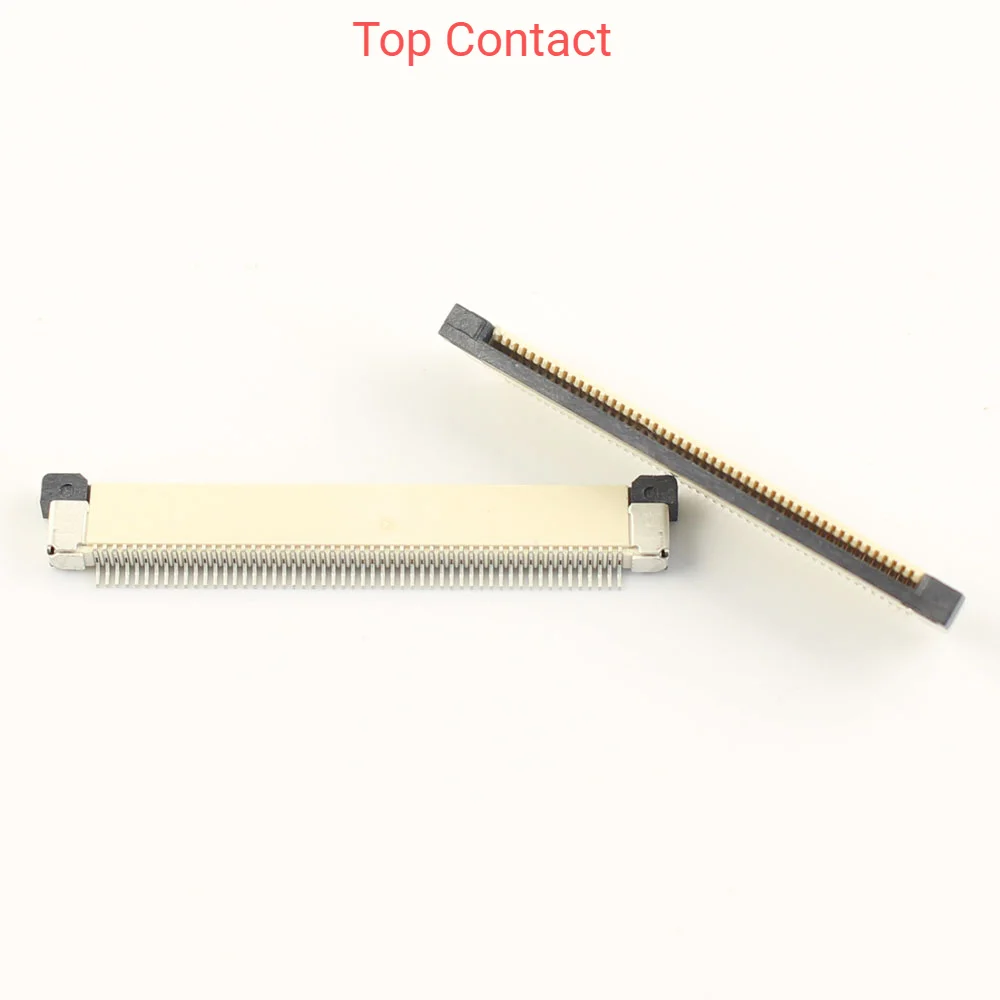

Contact Type: Top Contact / Bottom Contact
Number of pin: 50P/54P/60P
Material Description:
Terminal: Phosphor Bronze Tin-plated
Fitting Nail: Brass Tin-plated
Housing: Thermoplastic(UL94V-O)
Slider: Thermoplastic(UL94V-O)
Electrical Characteristics:
Current Rating: 0.4A AC/DC
Voltage Rating: 50V AC/DC
Temperature Range: -25 to 85 degrees
Withstand Voltage: 500V AC/Minute
Contact Resistance: ≤20m Ohm
Insulation Resistance: ≥500M Ohm
Relative Humidity: 93%+40°C
Package Included:
10pcs FPC FFC 0.5mm Pitch Drawer Flat Cable Connector Top / Bottom Contact
