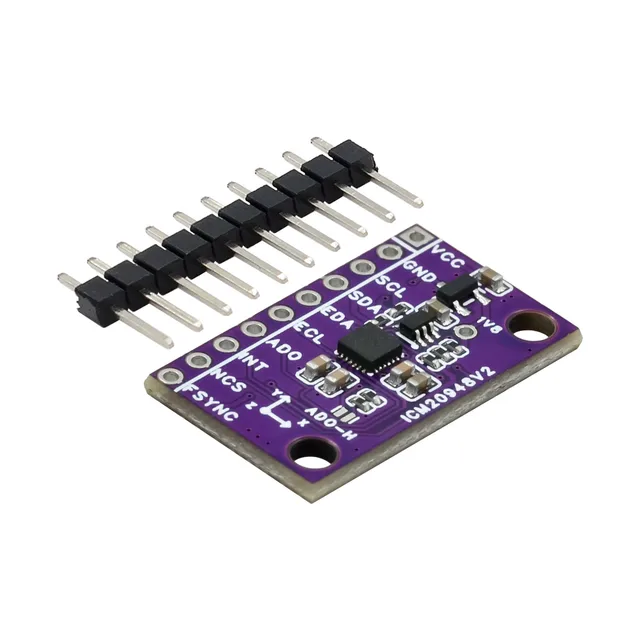

GY-ICM20948V2 9DOF 9-Axis Sensor Acceleration Magnetic Field Sensor Module ICM20948V2 ICM-20948 Replaces MPU-9250 MPU-9150

DescriptionReport Item
(1) ICM-20948 Nine Axis Module
(2) Model: GY-ICM20948V2
(3) Size: 15.5mm * 25.5mm
(4) Name: ICM-20948 Nine Axis Module (Three Axis Magnetic Field+Three Axis Acceleration+Three Axis Gyroscope)
(5) The chip is equipped with a 16 bit AD converter and 16 bit data output
(6) Using high-quality PCBs and machine welding technology to ensure quality
(7) Using chip: ICM-20948
(8) Power supply: 2-5v (internal low-voltage differential voltage regulation)
(9) Communication method: Standard IIC communication protocol (with level conversion)
