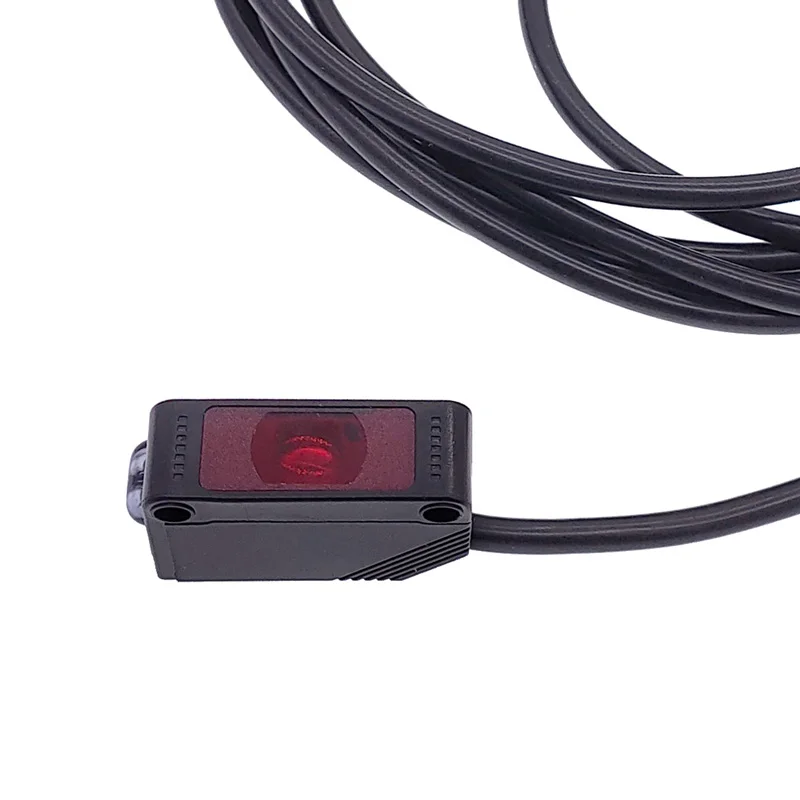

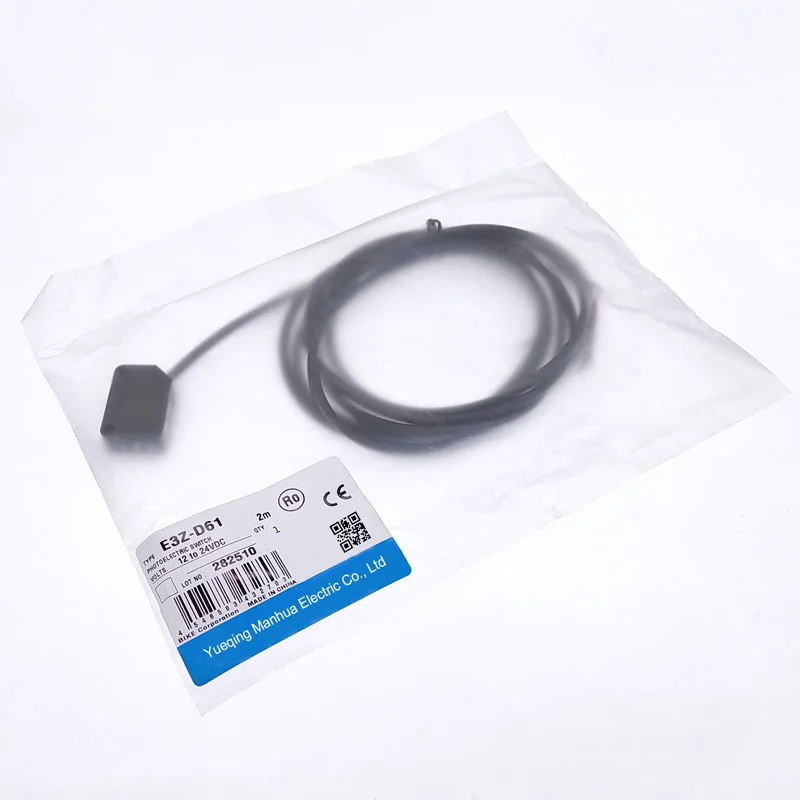

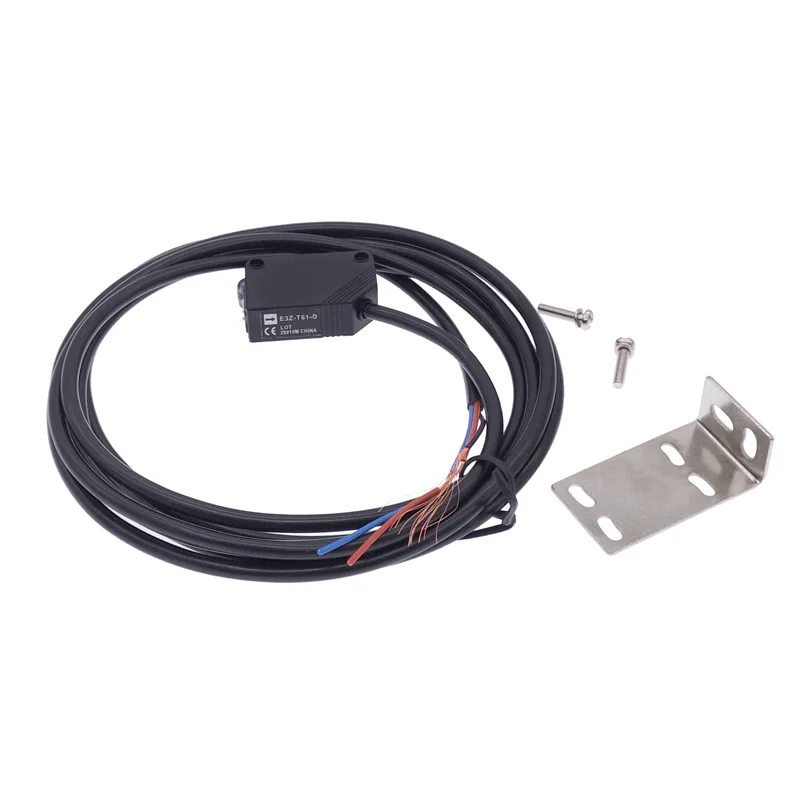

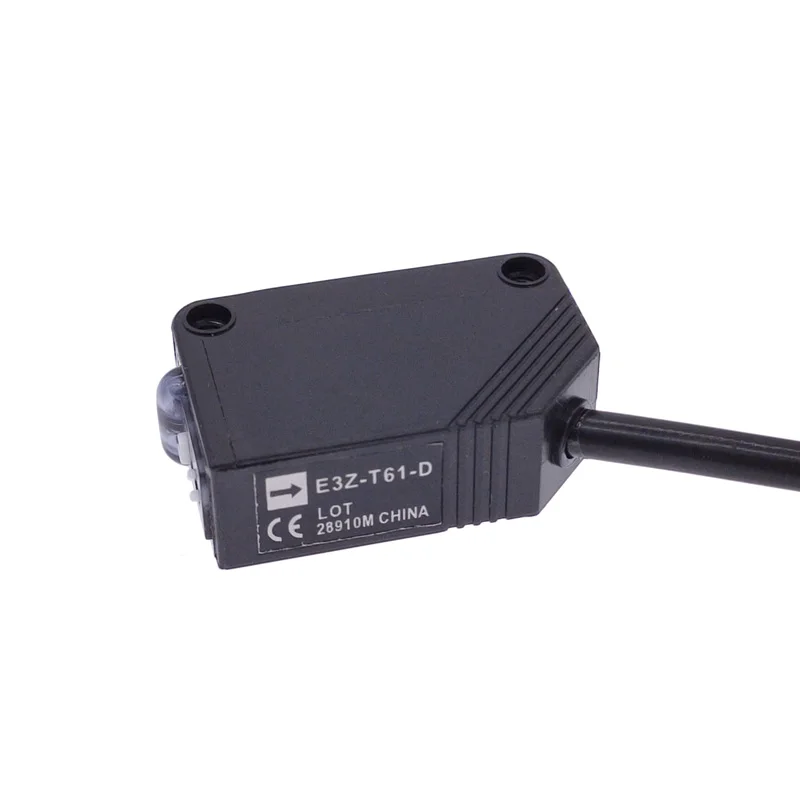

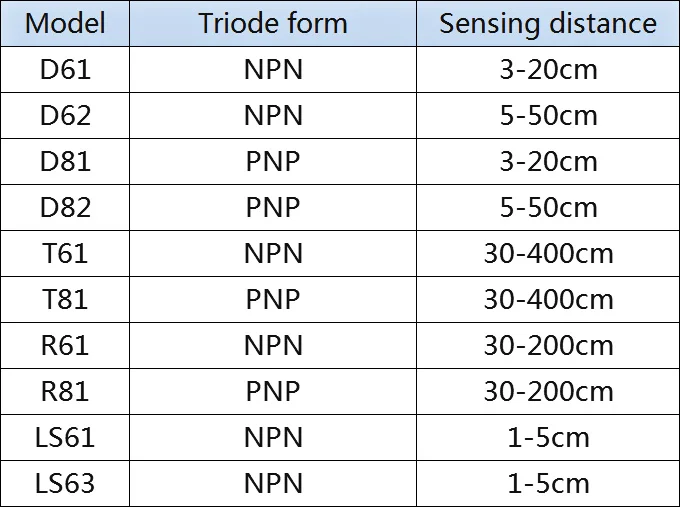

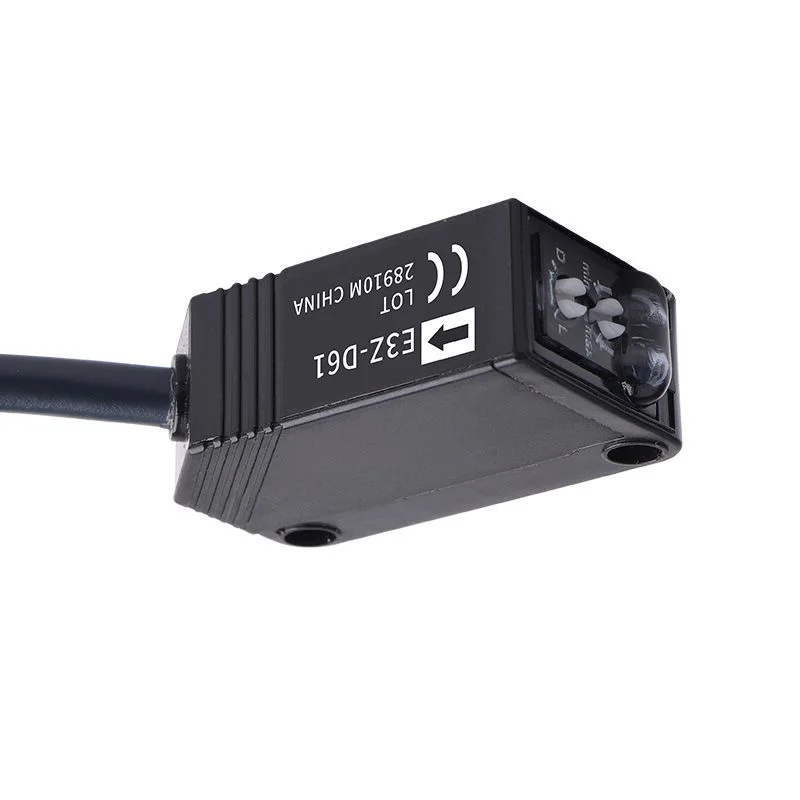

Infrared Photoelectric Switch Sensor Diffuse Reflection DC12V-24V with Bracket E3Z-D61 D81 E3Z-T61 T81 E3Z-R61 R81 LS61

Voltage: DC12-24V
Output current: 300mA
Reflection form: diffuse reflection type

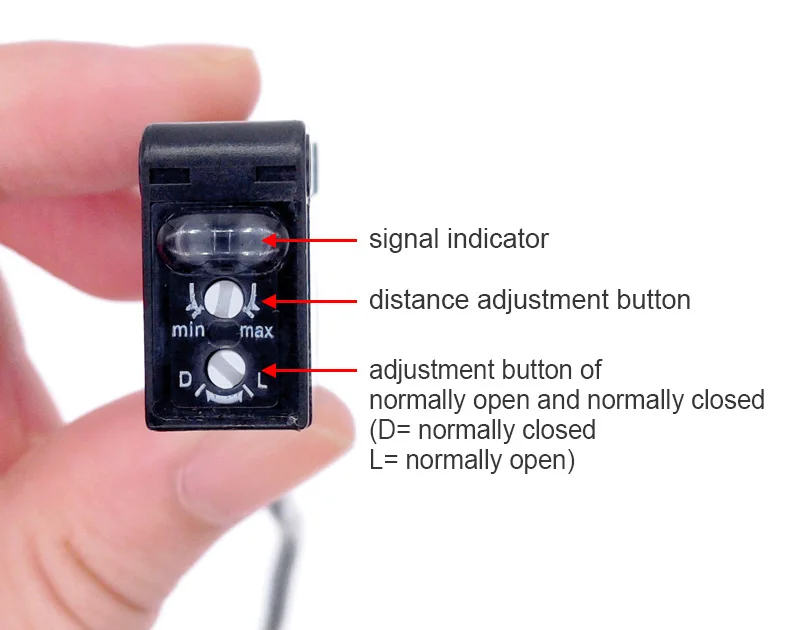

Action status: switchable “L” normally open, “D” normally closed
Standard detection distance: non fully transparent objects above 1mm (such as colorless glass)
Light source (wavelength): infrared luminescence (950)
Circuit protection: reverse connection protection, open circuit protection, surge protection
Service life: 2 million times
Response time: less than 2ms
Insulation resistance: above 20mΩ

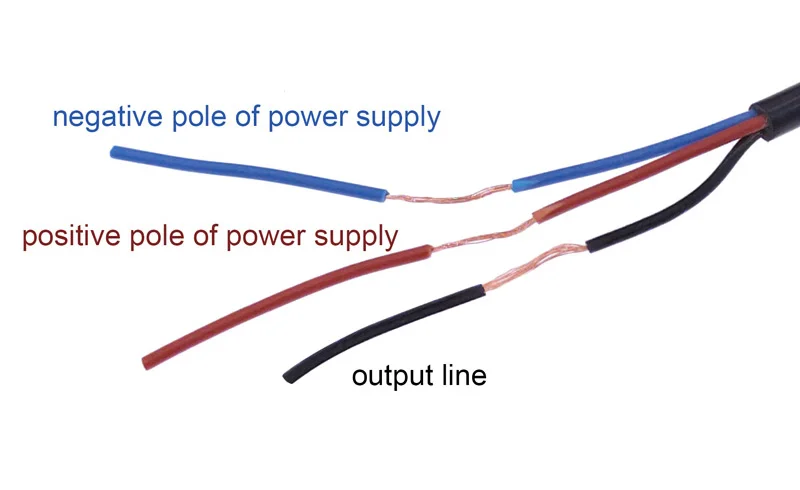

Conductor length: 2m
Shell material: ABS
Cable material: PVC
