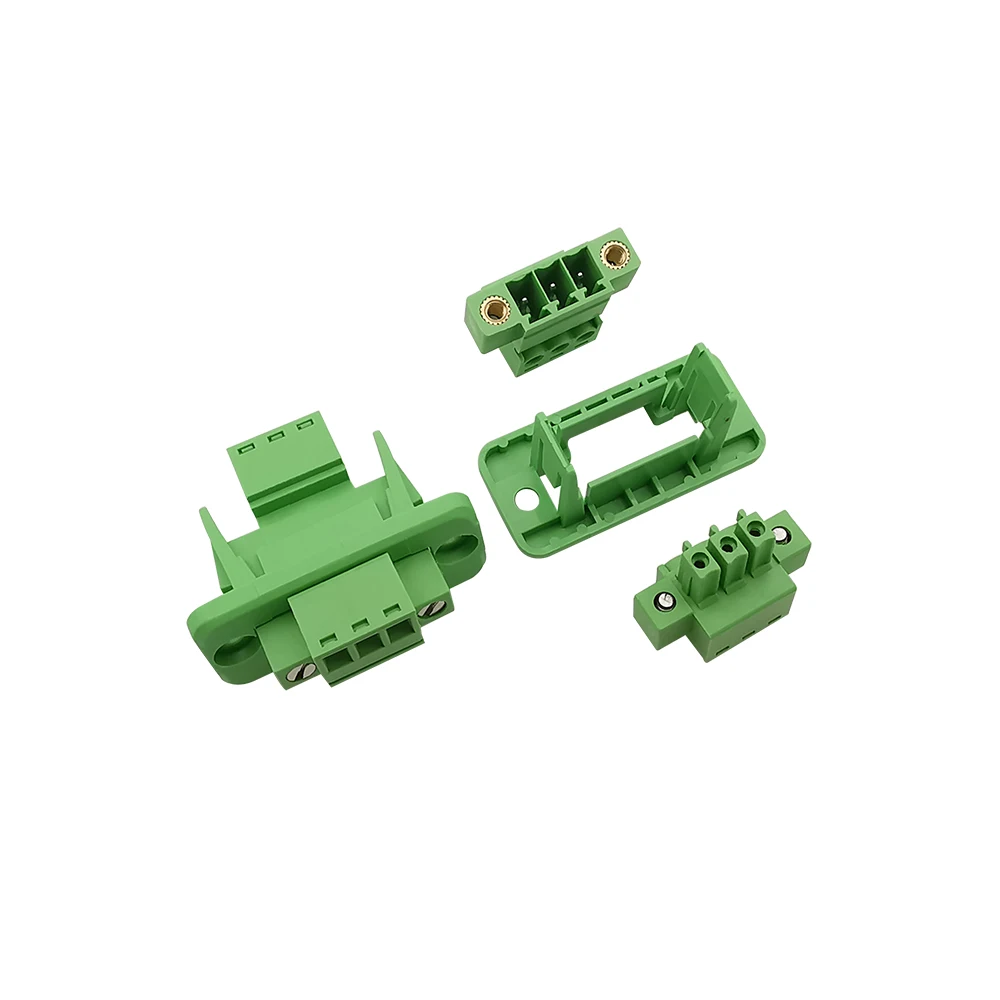

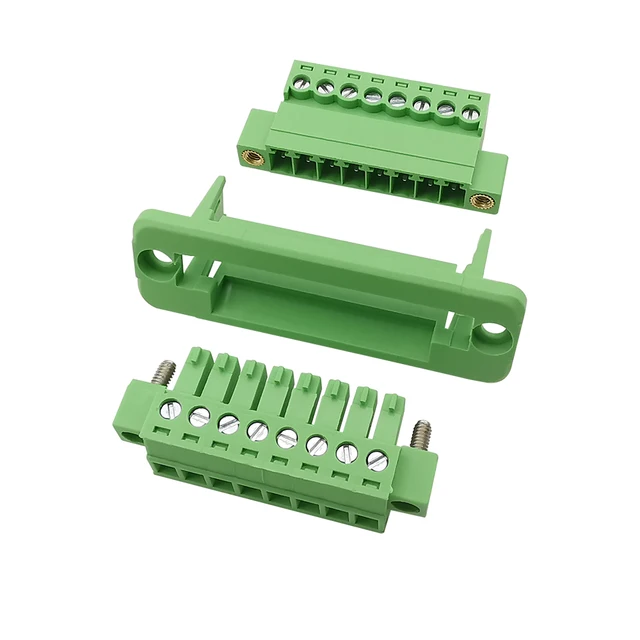

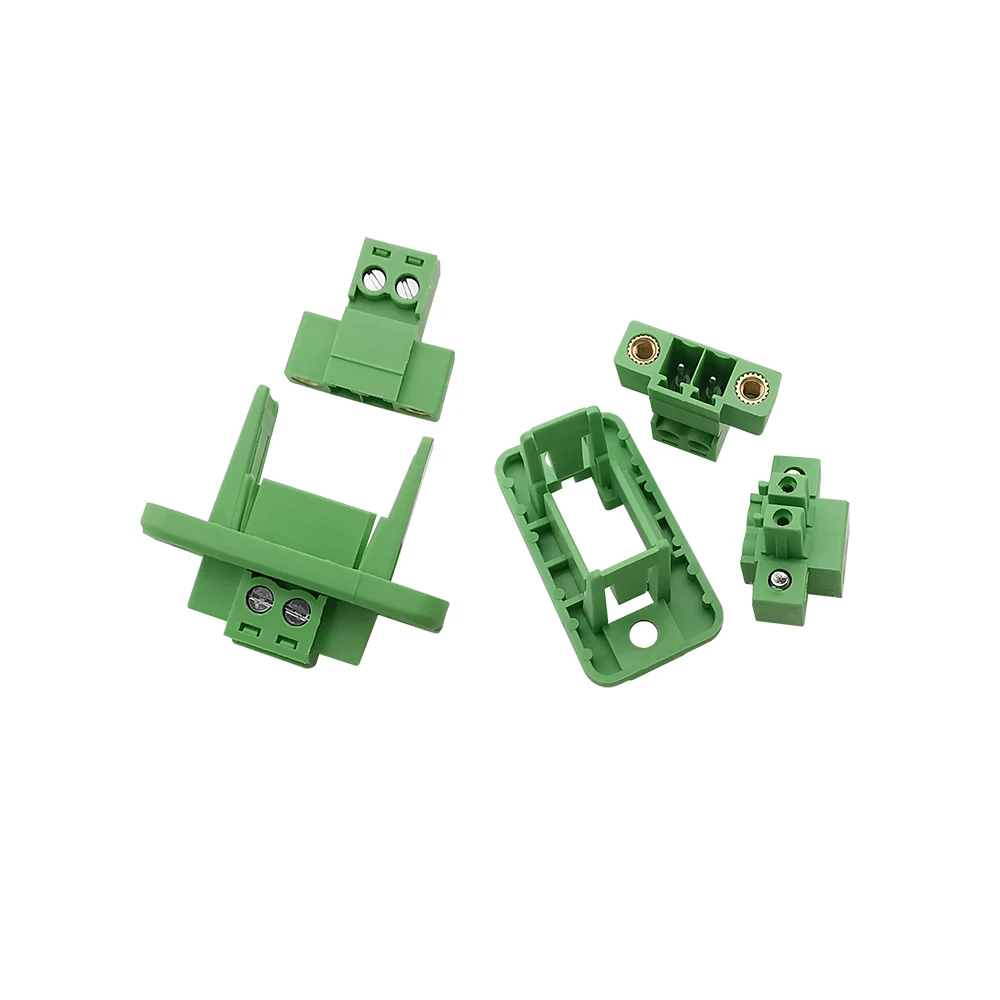

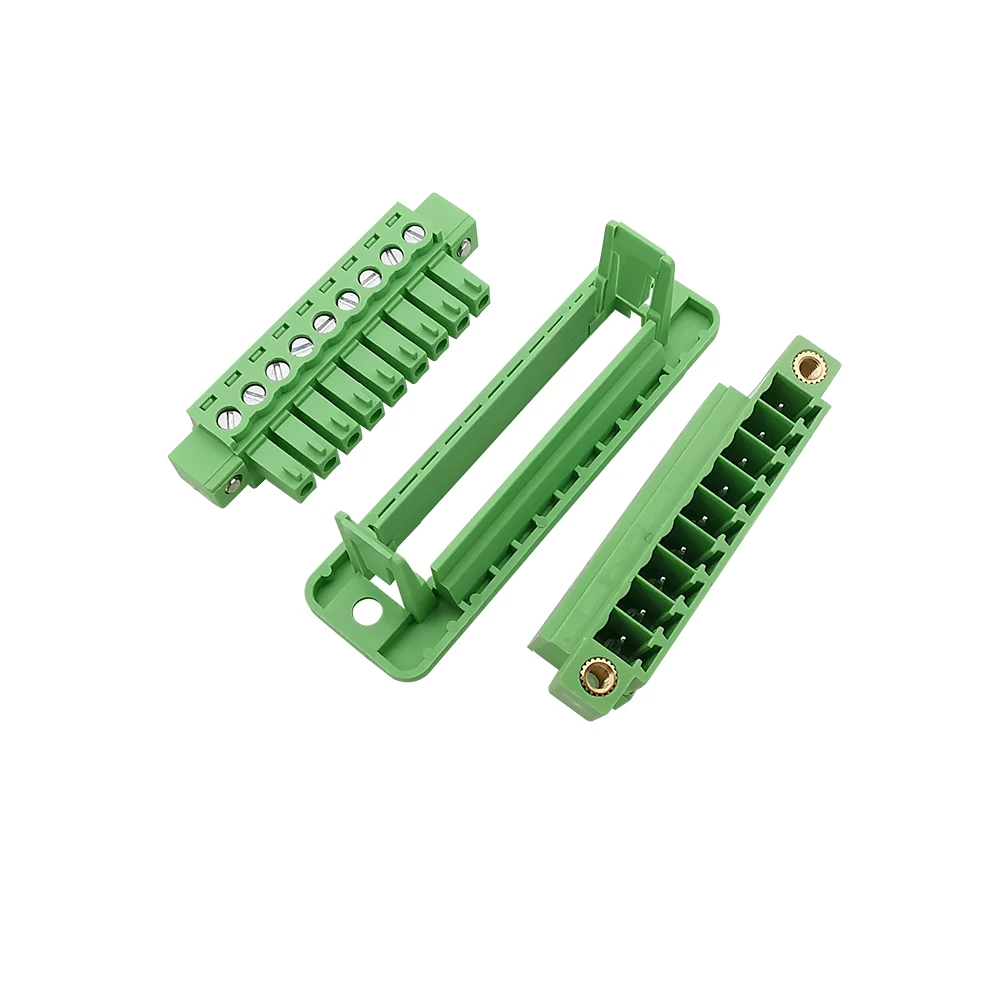

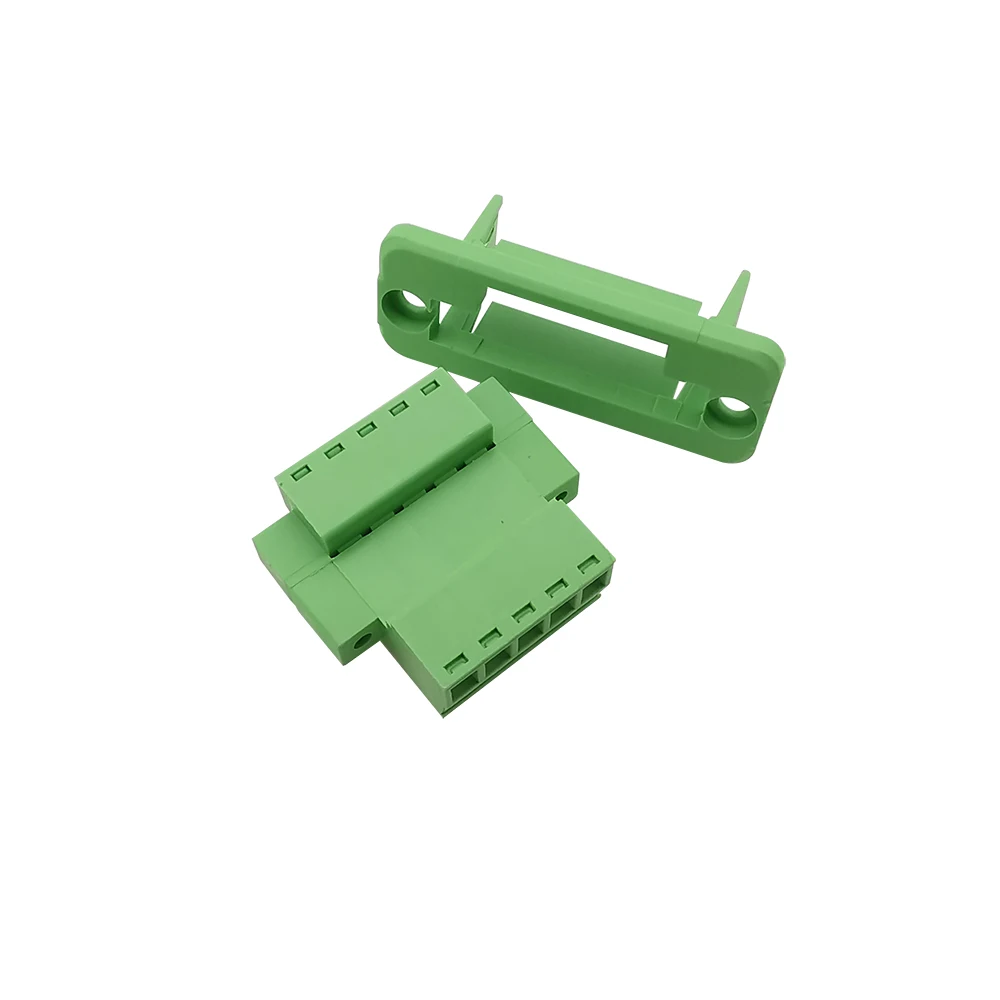

Pitch 3.81mm Through-Wall Terminal Block 2/3/4/5/6/7/8/9/10/12Pin Pluggable Screw Terminal Block Connector 15EGDWC 15EDGKM 1

Pitch 3.81mm Through-Wall Terminal Block 2/3/4/5/6/7/8/9/10/12Pin Pluggable Screw Terminal Block Connector 15EGDWC 15EDGKM 2

Pitch 3.81mm Through-Wall Terminal Block 2/3/4/5/6/7/8/9/10/12Pin Pluggable Screw Terminal Block Connector 15EGDWC 15EDGKM 3

Pitch 3.81mm Through-Wall Terminal Block 2/3/4/5/6/7/8/9/10/12Pin Pluggable Screw Terminal Block Connector 15EGDWC 15EDGKM 4

Pitch 3.81mm Through-Wall Terminal Block 2/3/4/5/6/7/8/9/10/12Pin Pluggable Screw Terminal Block Connector 15EGDWC 15EDGKM

SKU: AO2LR38F4JHU

Price range: ¥15.00 through ¥47.00

4662 Items sold in last week

color

Package Quantity

Clear

Add to compare

Payment Methods:

Description

Color: Green, Silver

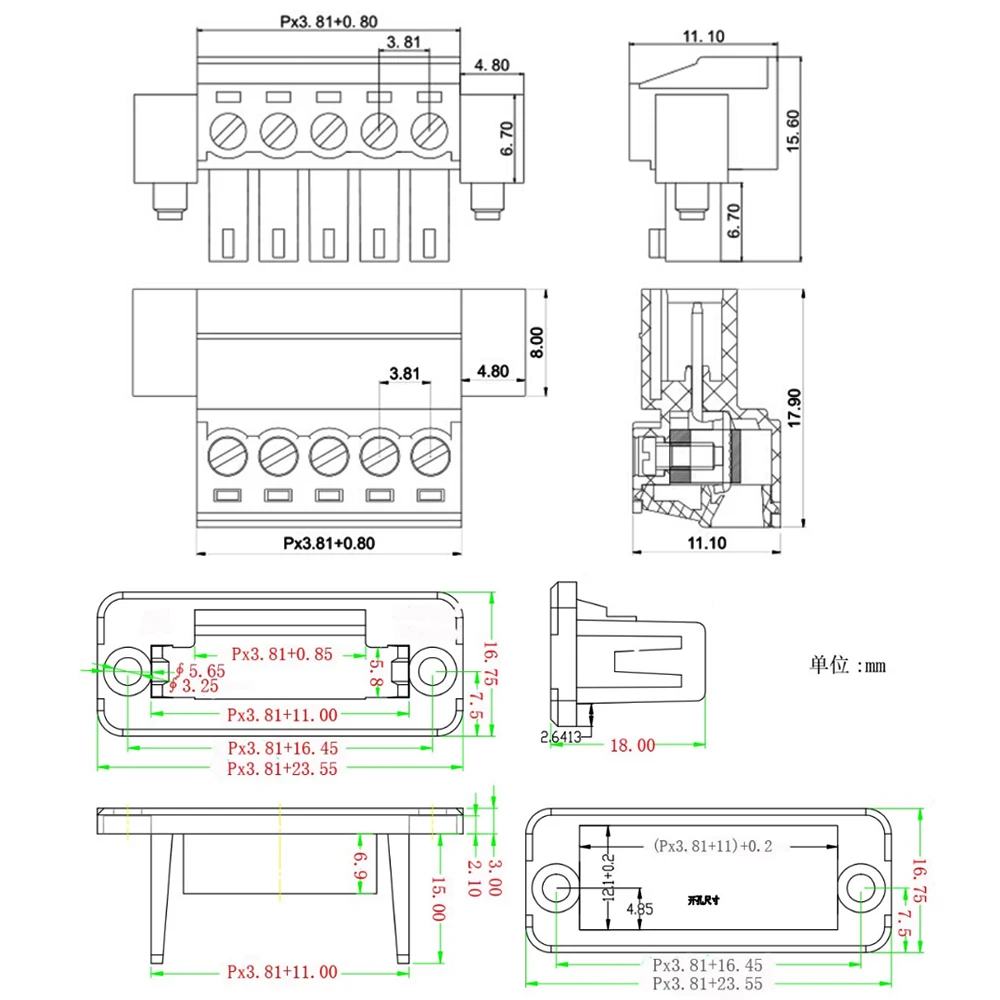

Pitch: 3.81mm
Pins: 2Pin, 3Pin, 4Pin, 5Pin, 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 12Pin.
Gender: Male, Female
Voltage/Current: 300V / 8A
Recommend Wire: 0.2-1.5mm2
Strip length: Appr 7-8mm
Material: PA66, Brass Nickel/Tin Plated, Steel, Iron
The through-wall terminal block for electrical connections provide a compact and efficient wiring solution.
Package: Choose

Note:
1. Please confirm whether it is the product you need before payment.
2. Please allow ±0-2mm difference due to manual measurement.(1inch = 25.4mm)
3. The picture may not reflect the actual color of the product, subject to the actual product.
Please make sure you do not mind before you bid. Thank you!
