Features :

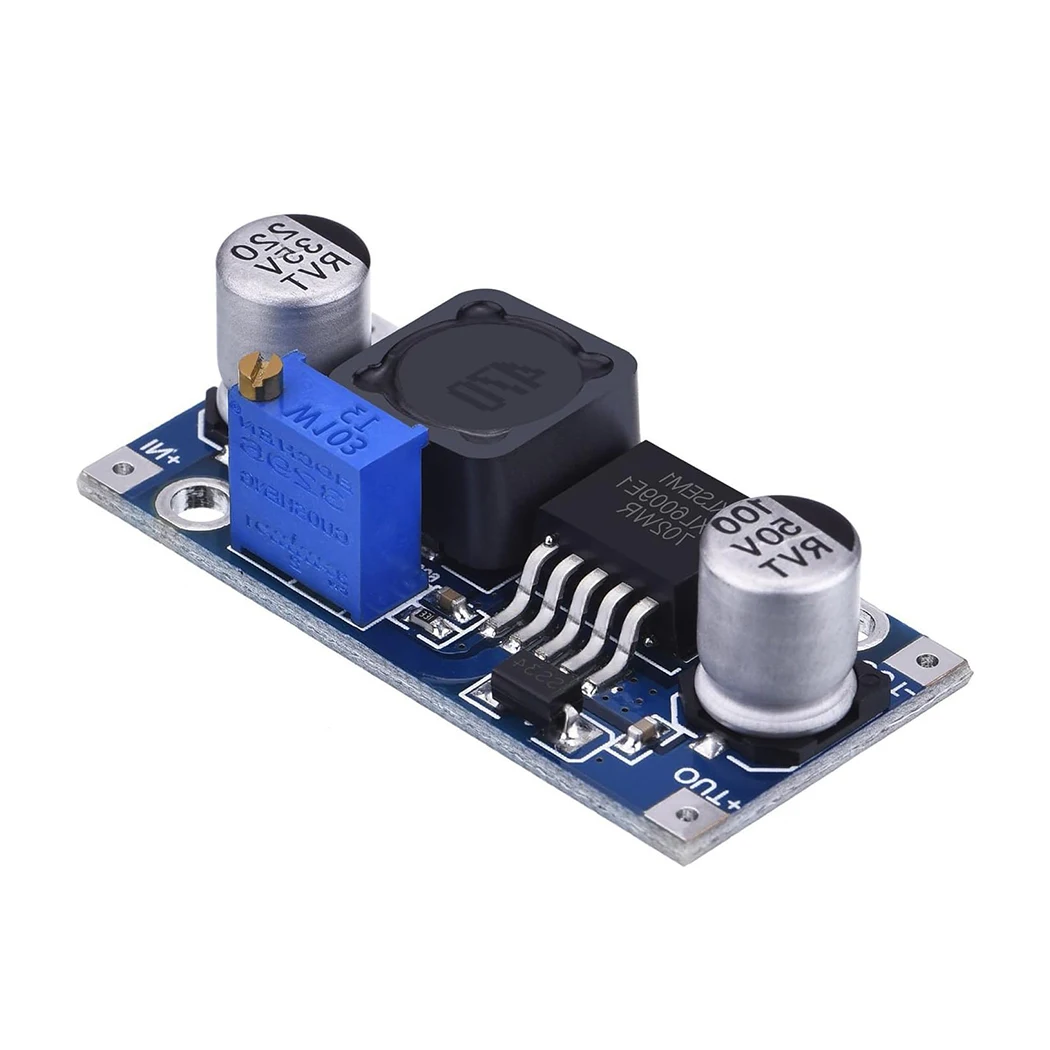

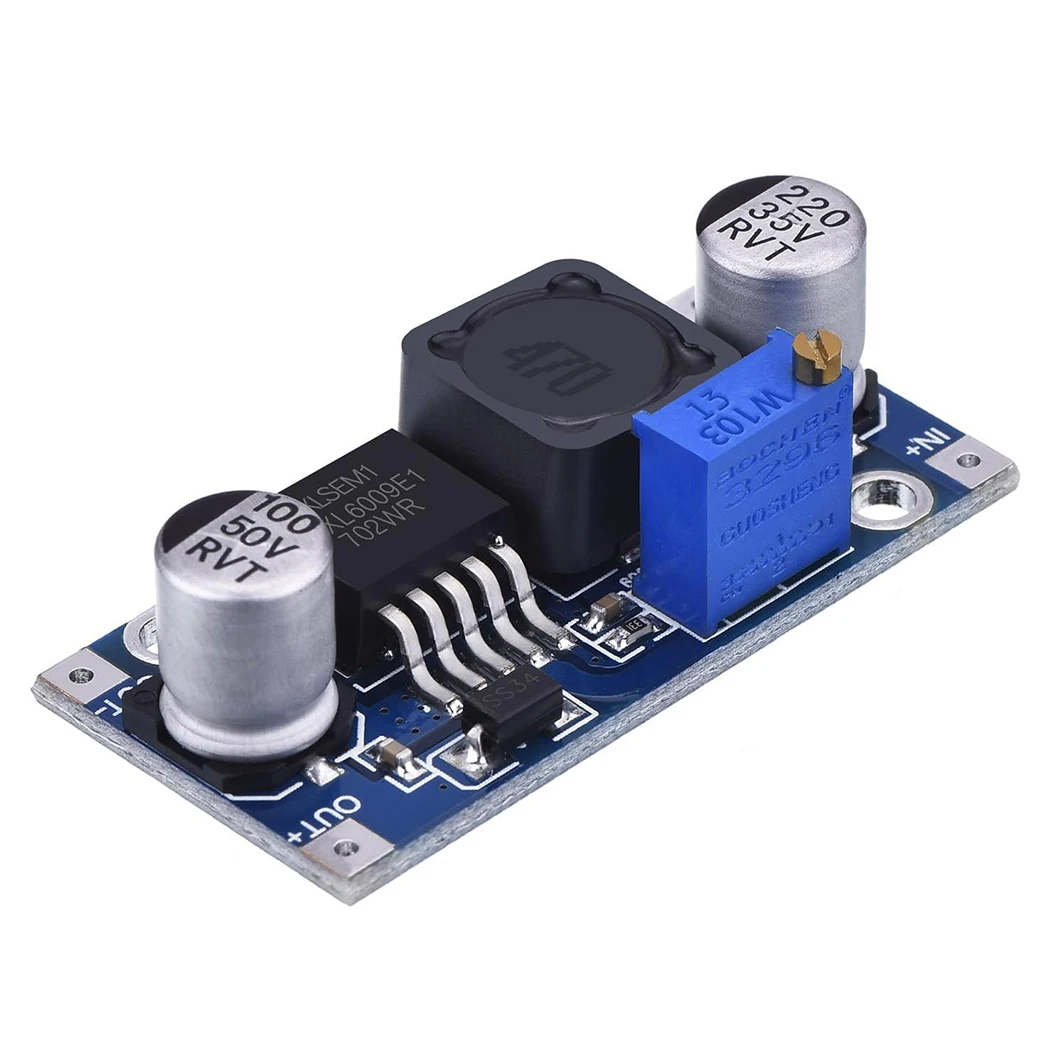

XL6009 is a high-performance 400KHz 4A switch currency step-up (BOOST) module. This module is coming with the 3rd generation high-frequency switch technology as the core chip, The performance is much higher than LM2577
Wide input voltage: 3V~32V;Optimum operating voltage range: 5~32V;Wide output voltage: 5V~35V
With 4A high efficiency MOSFET switches, the efficiency of XL6009 can be up to 94%(LM2577current is 3A
With ultra high switch frequency 400KHz , even if small capacity filtering capacitors can achieve very good results, ripple is smaller (Compared to LM2577,its frequency is 50KHz)
With 0.1uF high-frequency bypass capacitor, effectively filter out high-frequency noise
Specification:
Modules nature: Non-isolated step-up (Boost)
Rectification: Non-synchronous rectification

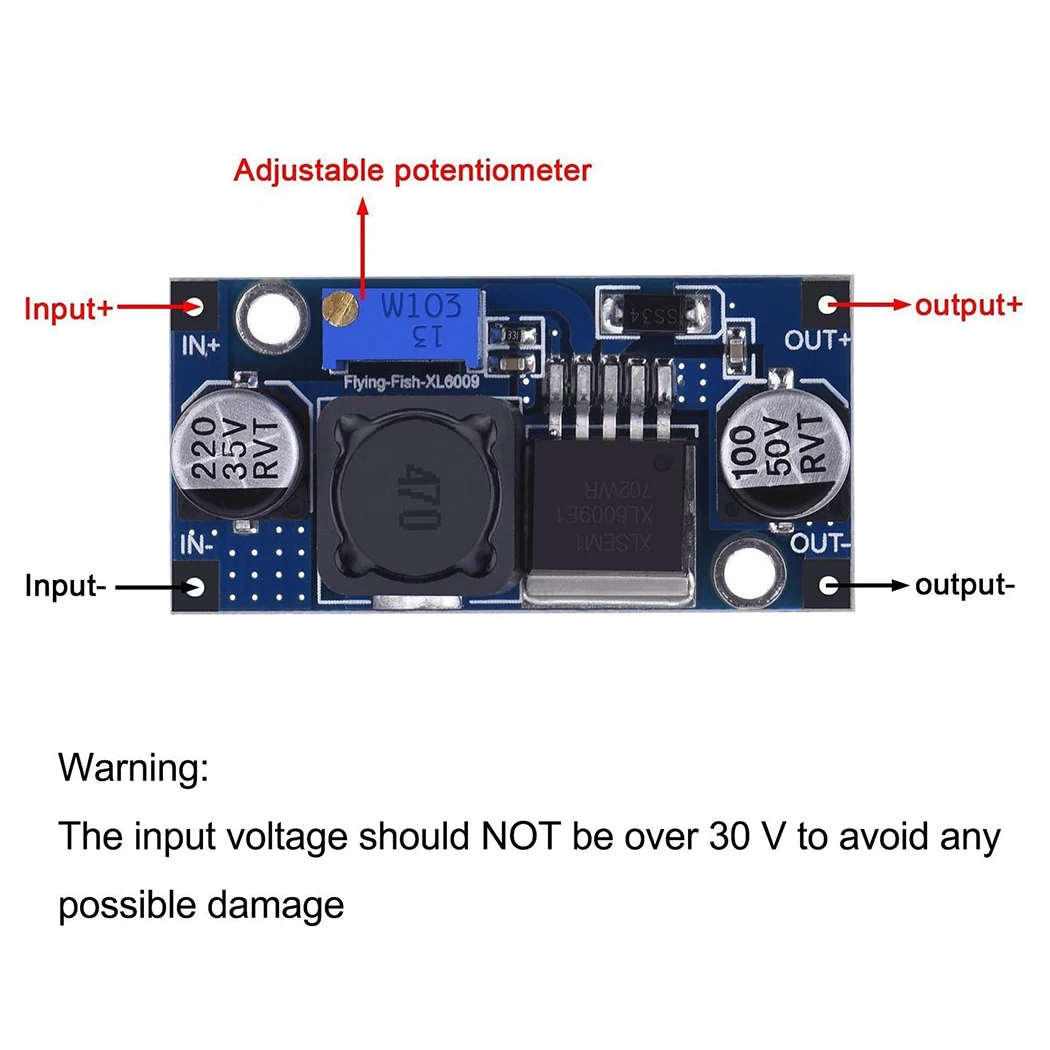

Input voltage: 3V-32V
Output voltage: 5V-35V
Input current: 4A (max), No-load current 18mA
Conversion efficiency: 94% (highest)
Switchig frequency: 400KHz
Output ripple: 50mV (max)
Load regulation: ± 0.5%
Voltage regulation: ± 0.5%
Operating Temperature: -40 ° C to +85 ° C

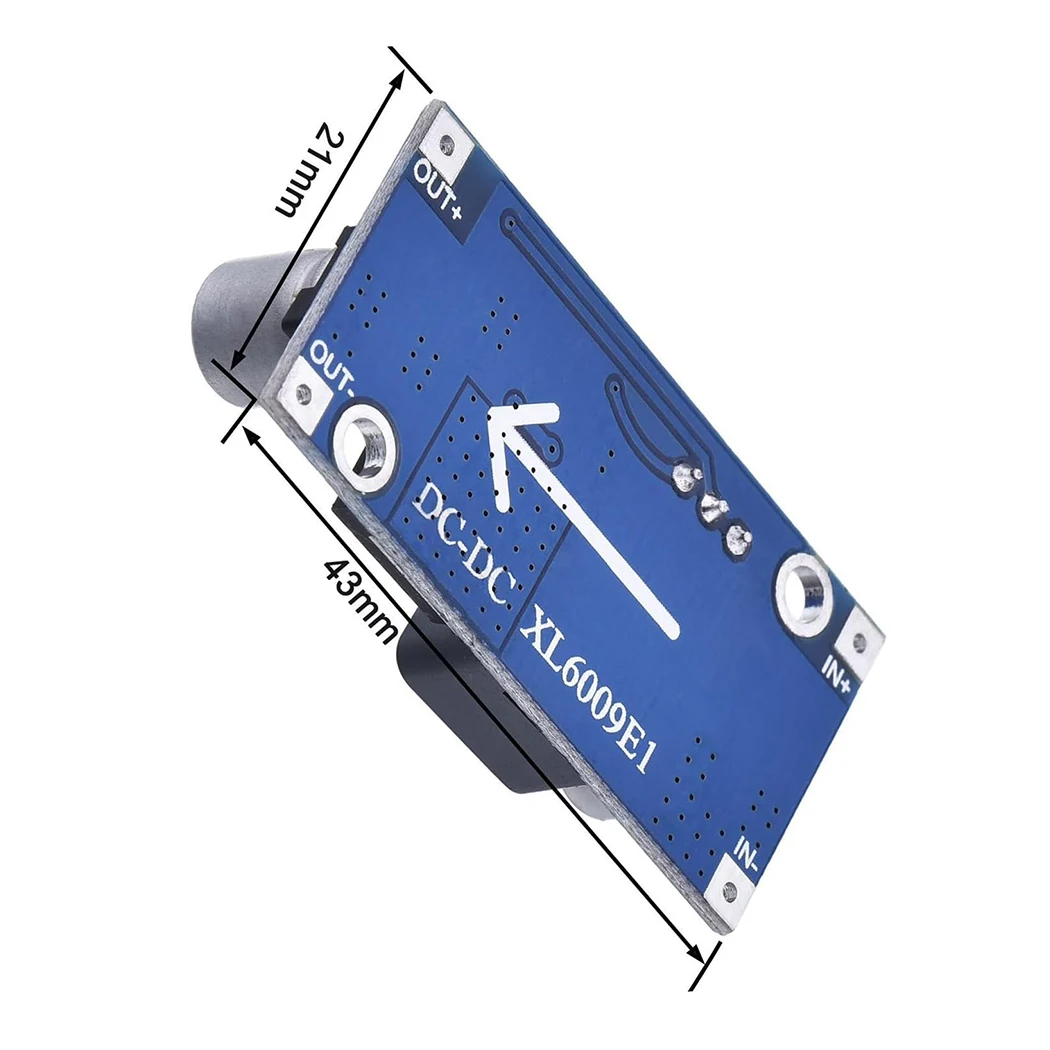

Dimension: 47 x 22 x 13 mm
Short Circuit Protection: NONE
Applications:
DIY a mobile power supply /Boost charger /Power supply for electronic equipment
Package Included:

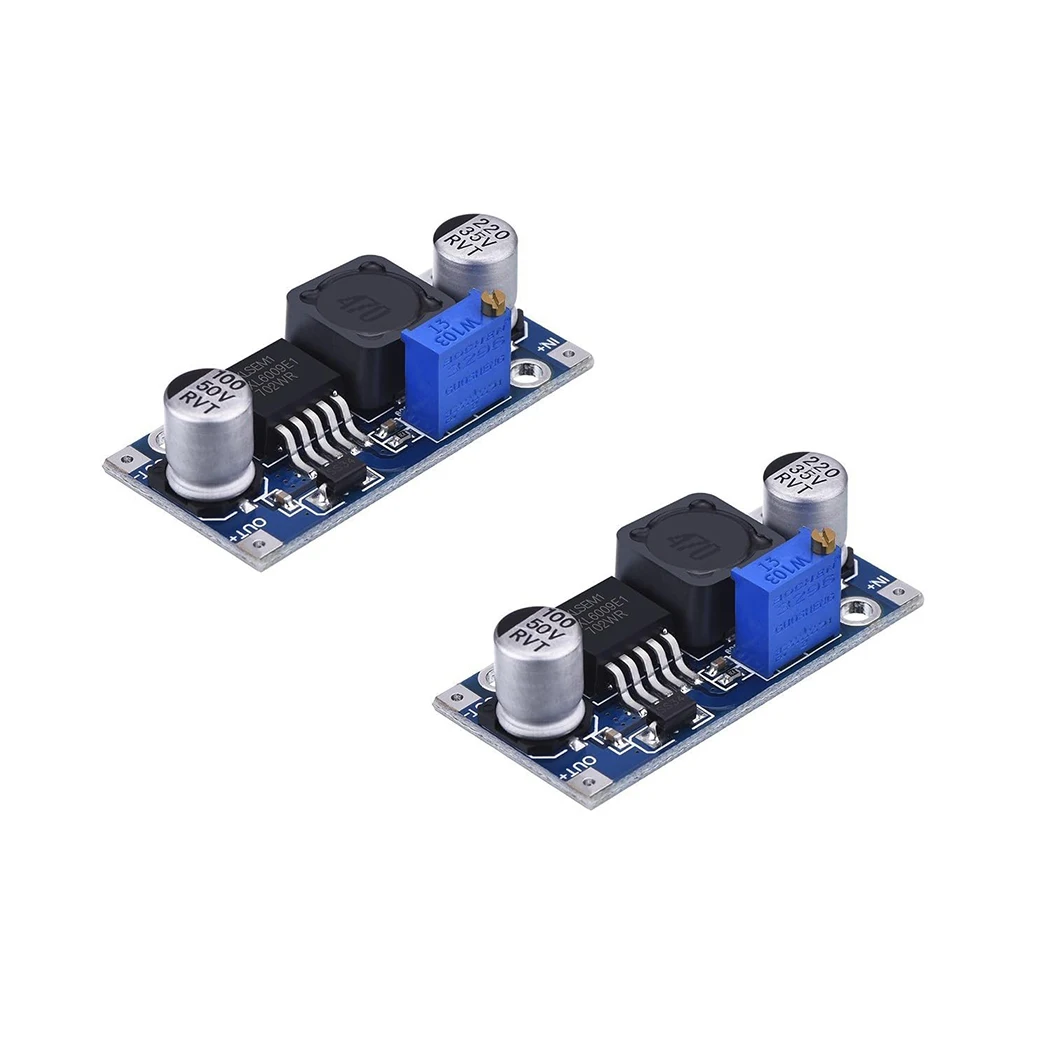

1/2PCS XL6009 Adjustable DC-DC Boost Module
(please choose the model and quantity you need,we will send the goods according to your choice.)
